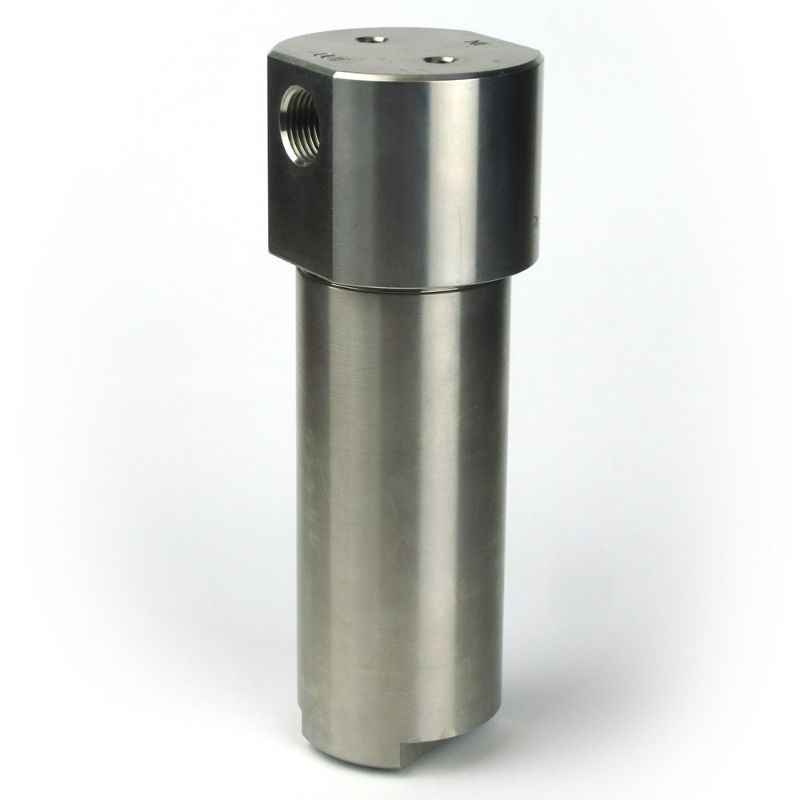

Parker FFC-113-6 - FFC-113 Compressed Air & Gas Filter - Up To 3600 PSIG

Parker Finite inline compressed air and gas FFC-113 replacement filters are used commonly onboard CNG (Compressed Natural Gas) powered vehicles.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FFC-113-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Drain Port Size	-	Plating Type	N/R
Head Material	Stainless Steel	Application	CNG onboard
Height	204.7 mm	Division	Industrial Gas Filtration and Generation Division
Width	2.97 inch	Weight	5.5 lb
Maximum Operating Temperature	105 °C	Port Size	1/2 inch
Specifications Met	-	Maximum Operating Pressure	248 barg
Brand	Finite	Optional Accessories	No Accessories
Minimum Operating Temperature	-40 °C	Filter Type	Coalescer
Bowl Type	Standard	Compatible Element	FFC-113 Replacement Element
Seal Material	Fluorocarbon	Connection Type	NPT
Filter Rating (%)	99.97	Micron Rating (µm)	0.01
Maximum Flow Rate (cfm)	25 to 788
