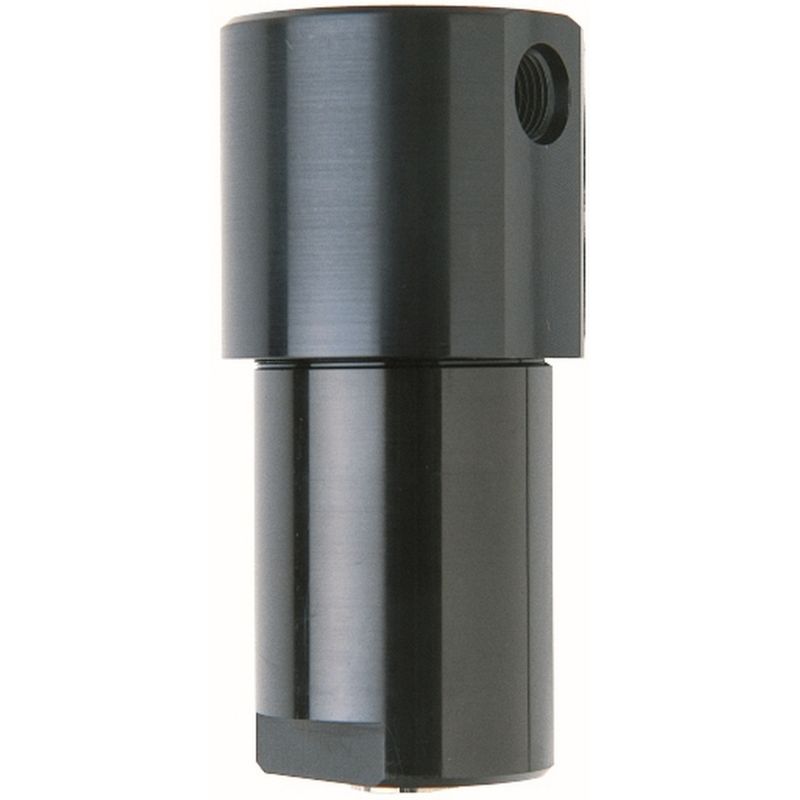

Parker FFC-112-06 - Compressed Natural Gas (CNG) Assemblies – Racor FFC Series

Racor FFC CNG Filter / Service Elements protect alternative fuel system injectors and components by removing aerosol contaminants in CNG as small as 0.3 – 0.6 micron with up to 99.97% efficiency.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FFC-112-06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Flurocarbon	For Fluid Type	CNG
Brand	Racor	Division	Engine Mobile Original Equipment Division
Height	4.8	Application	Onboard CNG powered vehicles
Compatible Element	CLS112-06	Diameter	2.3
Weight	1.5	Mounting Type	(Top) 5/16”-18 UNF
Maximum Operating Temperature	-40 to 221	Operating Features	0.5 oz. sump capacity
Drain	Plug	Product Series	Cartridge CNG Fuel Filter
Port Connection	1/4" NPT x2	Flow Capacity (CFM)	315 @ 3600 psig
Maximum Working Pressure (Bar)	248	Media	Coalescer grade 06
Material	Anodized Aluminum	Maximum Working Pressure (psi)	3600
Flow Capacity (m3/h)	535 @ 24821 kPa
