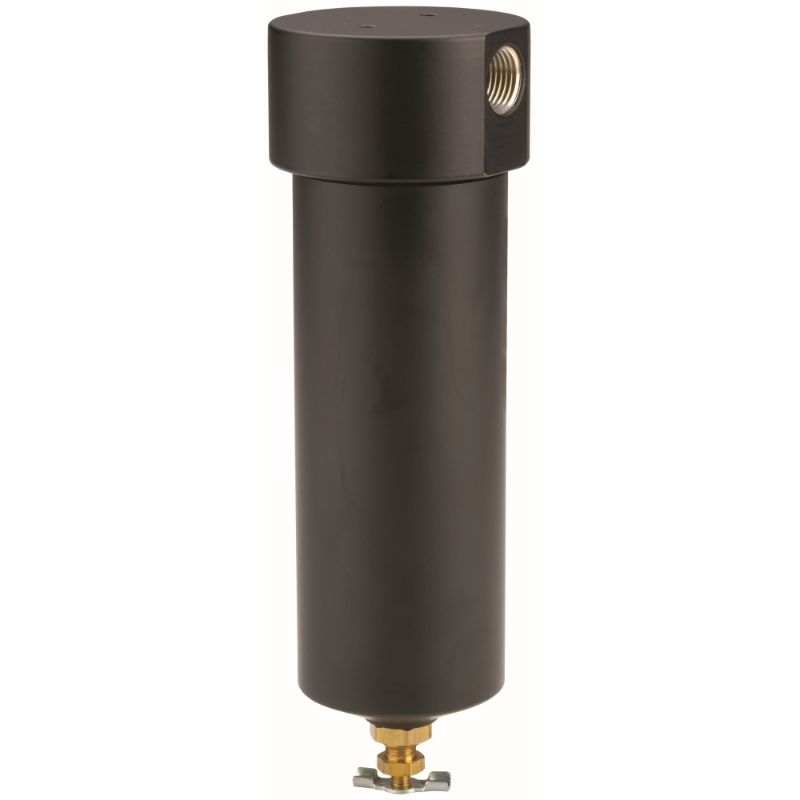

Parker FFC-110-06 - Compressed Natural Gas (CNG) Assemblies – Racor FFC Series

Racor FFC CNG Filter / Service Elements protect alternative fuel system injectors and components by removing aerosol contaminants in CNG as small as 0.3 – 0.6 micron with up to 99.97% efficiency.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FFC-110-06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Element	CLS110-06	Mounting Type	(Top) 3/8”-16 UNC-2B X2
Diameter	7.9 cm	Seal Material	Flurocarbon
Operating Features	5.1 oz. sump capacity	For Fluid Type	CNG
Maximum Operating Temperature	-40 to 221 °F	Product Series	FFC Series
Drain	1/8" NPT / Brass Petcock	Brand	Racor
Height	18.3 cm	Division	Engine Mobile Original Equipment Division
Weight	1.5 lb	Application	Onboard CNG powered vehicles
Flow Capacity (CFM)	67 @ 500 psig	Maximum Working Pressure (psi)	800
Media	Coalescer grade 06	Maximum Working Pressure (Bar)	55
Port Connection	1/4" NPT x2	Material	Powder Painted Chromated Aluminum
Flow Capacity (m3/h)	114 @ 3447 kPa
