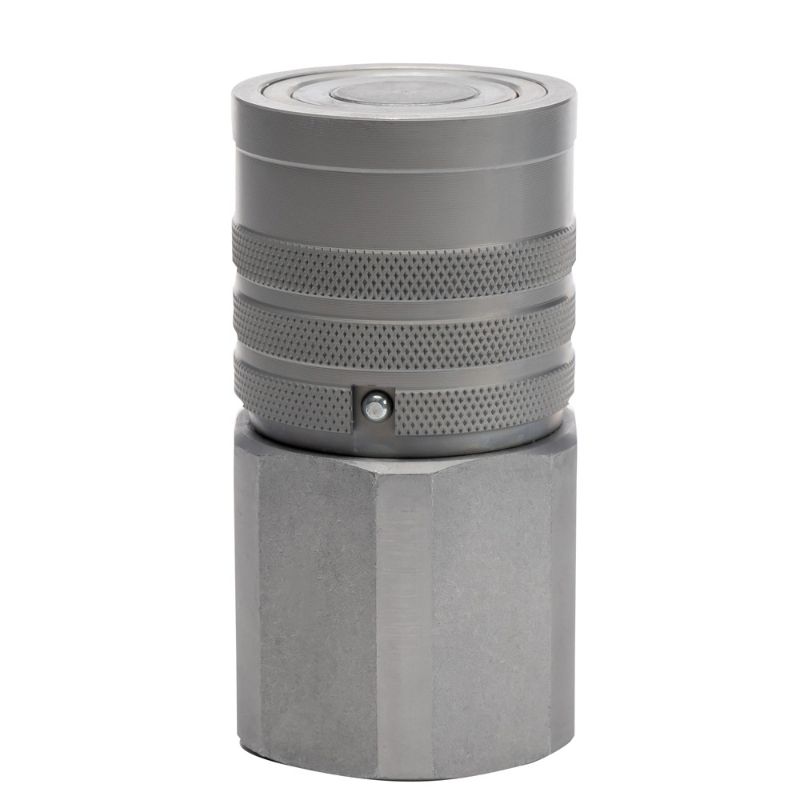

Picture of Parker FEM-1001-16FP-NL - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker FEM-1001-16FP-NL - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion
AFP Availability:
1 Limited Stock
Norfolk, VA1
Partner Available:3 In Stock
Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
Brand Parker
Part No. FEM-1001-16FP-NL
$295.62/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileMaximum Operating Temperature250 °F
DivisionQuick Coupling DivisionDimensional Weight0.6232014388489209 lb
Body MaterialSteelHex Size55 mm
Specifications MetHTMAFlow Rate50 Gal/min
Minimum Operating Temperature-40 °FPlating TypeZinc with Clear Trivalent Chromate
ApplicationNon-spillProduct TypePush to Connect
Valve TypeNon-spillMaximum Operating Pressure2900
Coupling HalfFemale CouplerBody Size (inch)1
Connection TypeFemale NPSFConnection Thread Size (inch)1 - 11 1/2
Max Pressure2900 PSI (200 bar)UOMEA
MaterialSteelPkg Qty/UOM1 EA
Thread 11 NPSFBody Size1 Inch
Pkg Qty1MaterialSteel
Quick Coupler TypeHydraulic Non-SpillCoupler/Nipple/ShellCoupler
Inch/MetricInchThread 1 TypeNPSF
Thread 11 NPSFMax Pressure Range2000 to 2999 PSI ( 138 to 207 bar)
Body Size1 InchApplicationHydraulic
Configuration TypeFemale NPSFParker DivisionQuick Coupling
SeriesFEMParker GroupFluid Connector
