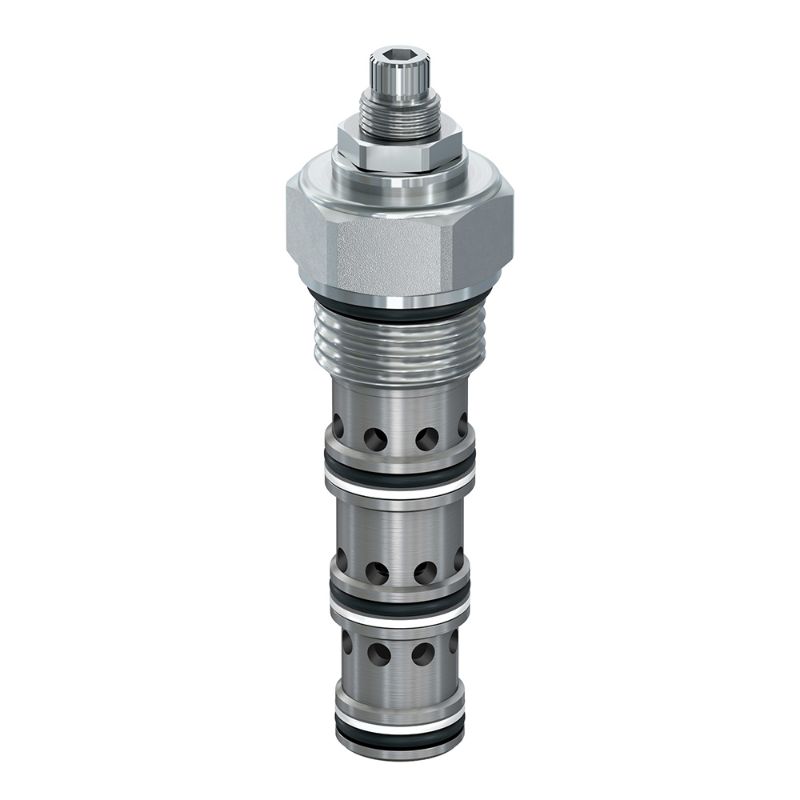

Parker FCPH121F - Priority Pressure Compensators

REGIONAL - Parker’s priority pressure compensators provide constant flow regardless of pressure changes via a fixed or adjustable orifice with priority to one outlet port at flows up to 95 lpm (25 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FCPH121F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	380 bar	Weight	0.62 lb
Valve Material	All parts steel. All operating parts hardened steel	Body Material	n/a
Installation Torque	29 Nm	Adjustment Mechanism	Fixed
Pressure Differential	160 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Function	Priority Pressure Compensators	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Flow Rate Accuracy	N/A	Seal Material	Nitrile
Maximum Inlet Pressure Rating	5500 psi	Maximum Operating Temperature	+121 °C
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Cavity Size	C12-4	Flow Rate	95 L/min
Actuation Type	Pressure Compensation	Minimum Operating Temperature	-30 °F
Maximum Priority Flow	75 L/min	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-34 to +204 °C	Maximum Flow Rate	95 L/min
Maximum Priority Flow	20 GAL/MIN, 75 L/MIN	Pressure Differential	160 PSI, 11 BAR
Maximum Flow Rate	25 GAL/MIN, 95 L/MIN	Seal Material	Nitrile
