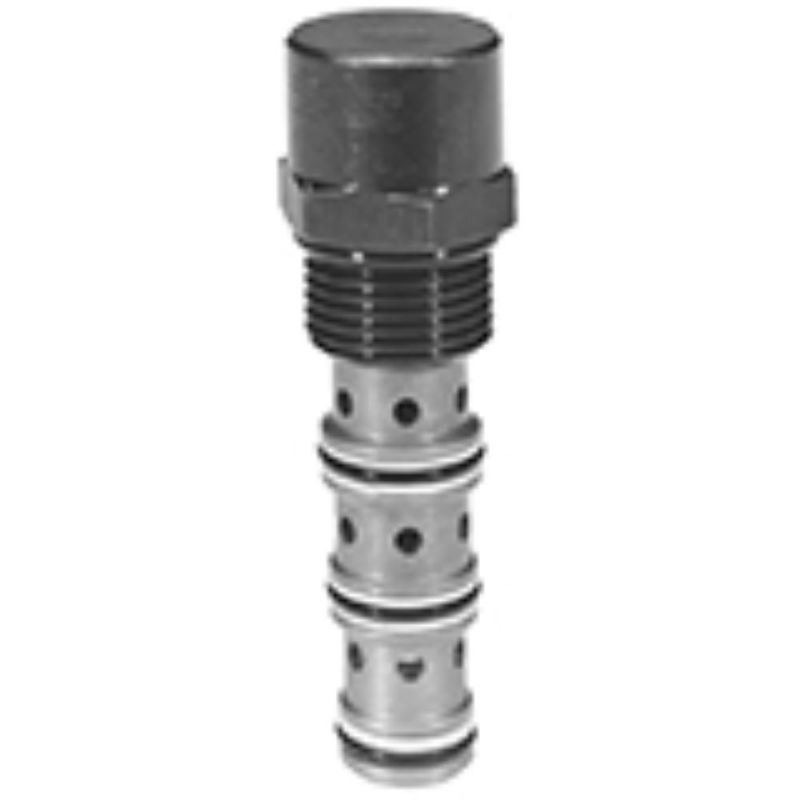

Parker FCP101F - Priority Pressure Compensators

REGIONAL - Parker’s priority pressure compensators provide constant flow regardless of pressure changes via a fixed or adjustable orifice with priority to one outlet port at flows up to 95 lpm (25 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FCP101F

$86.44

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Differential	160 psi
Flow Rate	56 L/min	Adjustment Mechanism	Fixed
Flow Rate Accuracy	10%	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Seal Material	Nitrile	Division	Hydraulic Systems Division
Maximum Flow Rate	56 L/min	Maximum Operating Temperature	+121 °C
Body Material	n/a	Weight	0.14 kg
Maximum Priority Flow	10 Gal/min	Division	Hydraulic Cartridge Systems Division
Valve Material	All parts steel. All operating parts hardened steel	Actuation Type	Pressure Compensation
Maximum Inlet Pressure Rating	245 bar	Cavity Size	C10-4
Minimum Operating Temperature	-30 °F	Operating Temperature	-30 to +250 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	Priority Pressure Compensators
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Installation Torque	16 lb-ft
Maximum Operating Pressure	3500 psi	Maximum Flow Rate	15 GAL/MIN, 56 L/MIN
Pressure Differential	160 PSI, 11 BAR	Seal Material	Nitrile
Maximum Priority Flow	10 GAL/MIN, 38 L/MIN
