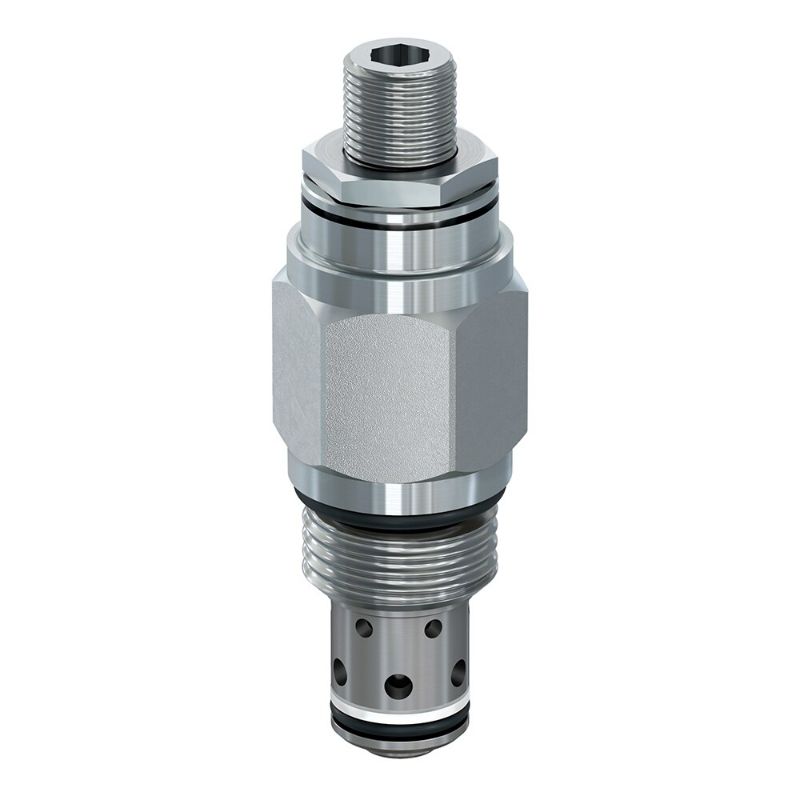

Parker FC101S100 - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. FC101S100

$132.94

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Flow Rate	15 Gal/min
Maximum Flow Rate	15 Gal/min	Installation Torque	22 Nm
Maximum Operating Pressure	3500 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	3500 psi	Weight	0.23 kg
Minimum Operating Temperature	-35 °C	Function	Flow Control
Adjustment Mechanism	Screw	Cavity Size	C10-2
Maximum Operating Temperature	+250 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate Accuracy	N/A
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Reverse Check	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Flow Rate Display Range	0.75-2.2 Gal/min
Standard Flow Rate Setting	1 Gal/min	Seal Material	Nitrile
Adjustment Mechanism	Screw	Configuration	Reverse Check
Maximum Flow Rate	15 GAL/MIN, 56 L/MIN	Flow Rate Display Range	0.75-2.2 GAL/MIN, 2.8-8.3 L/MIN
Standard Flow Rate Setting	1 GAL/MIN, 3.8 L/MIN
