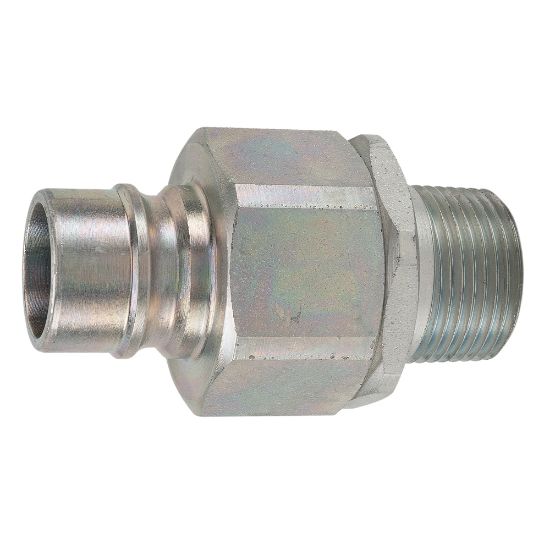

Parker VHN6-6M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VHN6-6M

$26.88/each

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Poppet
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Dimensional Weight	0.05341726618705036 lb	Minimum Operating Temperature	-40 °F
Body Material	Steel	Hex Size	1 inch
Seal Material	Nitrile	Application	Hydraulics
Product Type	Manual Connect	Plating Type	Zinc with Clear Trivalent Chromate
Connection Thread Size (inch)	3/8 - 18	Connection Type	Male NPT
Maximum Operating Pressure	4500	Body Material	Steel
Body Size (inch)	3/8	Valve Type	Poppet
Coupling Half	Male Nipple
