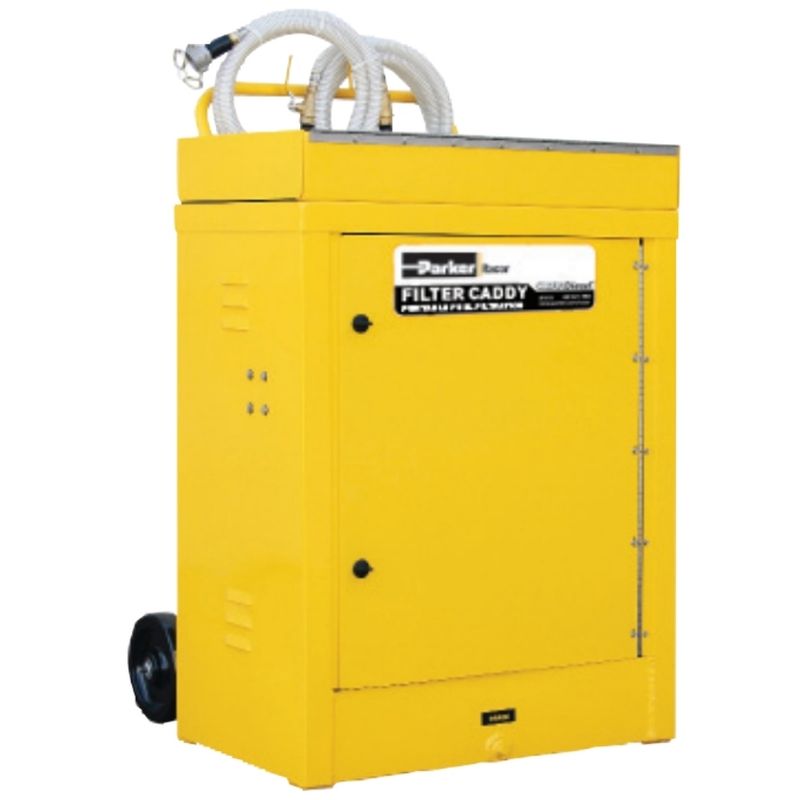

Parker FC-10-1 - Portable Fuel Filtration Carts - Racor

Racor Portable Fuel Filtration Carts are high-efficiency mobile filtration systems that clean fuel by removing water and contaminants that make their way into tanks during handling, transfer, and storage.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FC-10-1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Weight	n/a Contact us	Flow Rate	37.5 L/min
Width	76 cm	Height	108 cm (less handle)
Length	28 inch	Input Power	115.0 VAC at 15 A
Micron Rating	5 μm	For Fluid Type	Hydrocarbon Fuels
Product Series	Portable Filtration	Inlet Port Size	Quick Disconnect Ball Valves
Outlet Port Type	3/4" Ball Valve, quick disconnects	Compatible Element	FBO 60337 or other FBO element type depending on application needs.
Filter Element Type	Water Separator	Maximum Fluid Temperature	38 °C
Maximum Operating Pressure	1034 kPa	Maximum Pressure Differential	'Clean DP=2.5 psid. Change DP=30 psid psi
Flow Rate	10 gpm	Design Factor	FBO in Enclosure
Accessories Included	2x 10' Hoses, 2x 3' Probes
