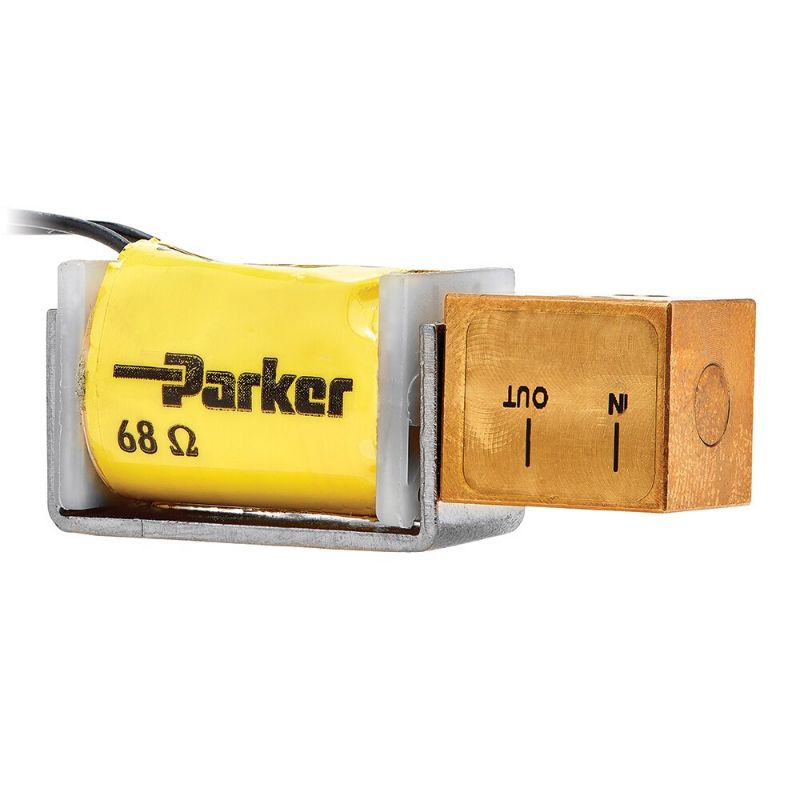

Parker Lone Wolf - Miniature Proportional Valve - Lone Wolf - Miniature Proportional Valve

Thermally compensated 2-way normally open (NO) proportional valve designed to maintain accurate and repeatable flow over a wide range of media at rates of up to 14 slpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. Lone Wolf - Miniature Proportional Valve

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	8.2	Operation Type	Electronic
Flow Rate	up to 8.2	Function	2-Way
Vacuum to Pressure Range	20 Inch-Hg to Pressure Rating	Width	0.63
Input Voltage	5.5	Weight	2.2
Electrical Connection	4-Pin PCB	Power Consumption	2.0 W Maximum
For Fluid Type	Gases	Mounting Type	Mounting Screw
Control Method	Current or Voltage	Maximum Operating Temperature	131
Connection Type	Manifold Face Mount	Body Material	Brass 360 H02
Length	1.79	Maximum Operating Pressure	20
Division	Precision Fluidics Division	Industry Application	Blood Pressure Monitoring
Actuation Type	Solenoid	Configuration	n/a
Orifice Size	0.036	Height	0.67
Seal Material	FKM	Leak Rate	< 0.0116 cm3/min of Helium @ 25 Psig
Connection Size	4-40 x 5/8" Pan Head Phillips Screw	Minimum Operating Temperature	32
Maximum Operating Voltage	136 VDC	Electrical Connection	PC Board Mount
Pneumatic Connection	Manifold Mount	Maximum Operating Pressure/Orifice Size	0-25 psi / 0.036"
