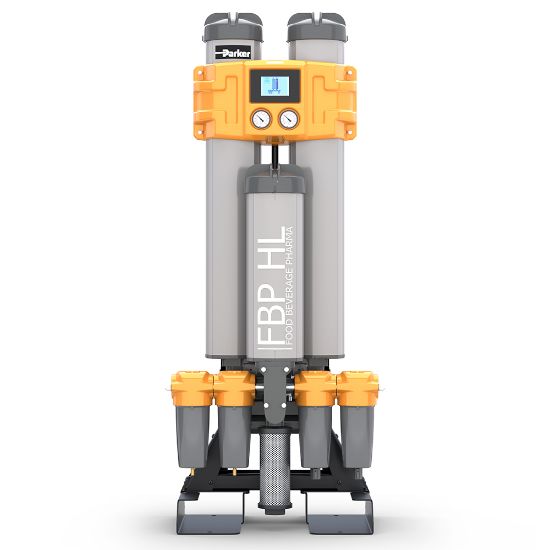

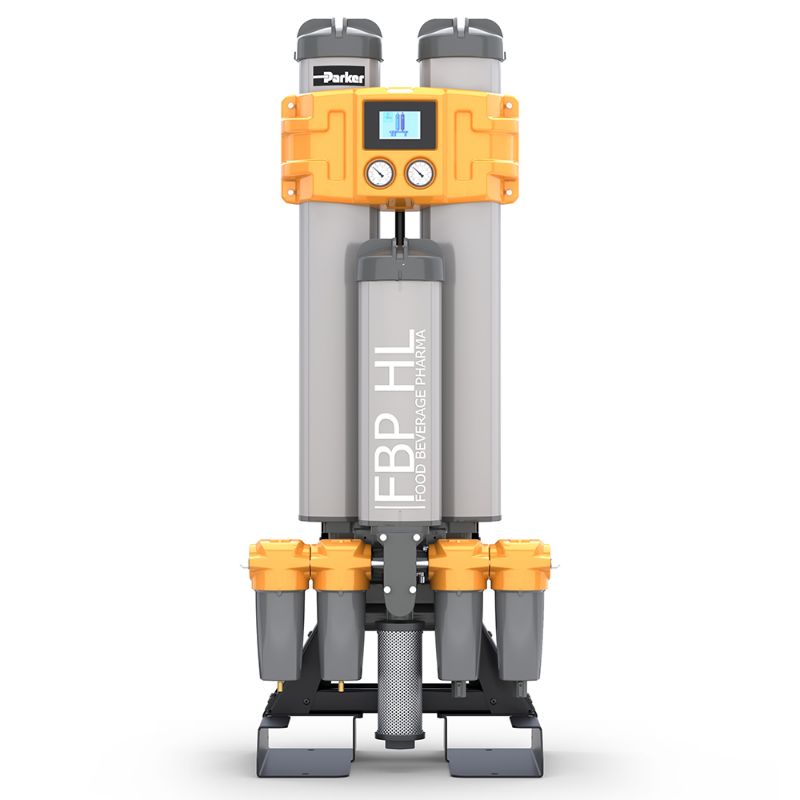

Parker FBPHL060-40G16AE - FBP HL Medium Flow Heatless Compressed Air Dryer System

FDA approved medium flow compressed air treatment systems, providing flow rates up to 300 m³/hr @ 7 barg. Suitable for food, beverage and pharmaceutical compressed air applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FBPHL060-40G16AE

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Compressed Air Applications	Product Series	FBP
Weight	238 lb	Ambient Temperature	131.0 °F Maximum
Ingress Protection Rating	IP55 Indoor Use Only	Division	Gas Separation and Filtration Division EMEA
Technology	Filtration	Operating Temperature	41 to 122 °F
Height	59 inch	Product Style	Heatless
Noise Level	< 75 dBA	Brand	Parker
Specifications Met	PED 2014/68/EU Fluid Group II	Width	559.0 mm
Industry	Food & Beverage<br/>Pharmaceuticals	Depth	19.5 inch
Product Type	Compressed Air Dryer	Division	Gas Separation and Filtration Division EMEA
Operating Pressure	58 to 232 psig	ISO Grade	Class 1.2.0 or Class 1.3.0
Connection Type	BSPP	Port Size	½ inch
Flow Rate	90 m³/h @ 7 barg (53 cfm @ 102 psig)	Electrical Requirements	85 - 265V 1ph 50/60Hz
Pressure Dew Point	-40°C (-40°F) or -20°C (-4°F)
