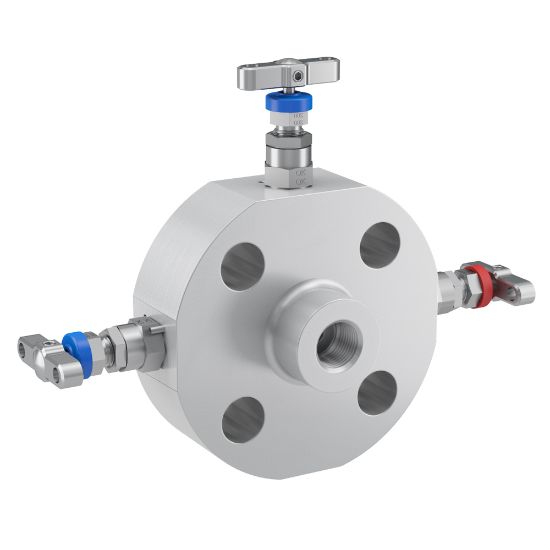

Parker MFH100B12F1500F - Monoflange Process to Instrument Valve

Parker's Monoflange is designed to replace conventional multiple-valve installations currently in use for interface with pressure measuring systems in process control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MFH100B12F1500F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flange Face Type	Raised Face Spiral	Connection Size	1/2" NPT F
Division	Instrumentation Products Division	ANSI Flange Class	1500
Flange Size	3/4"	Maximum Operating Temperature	1000
Configuration	Block-Block-Bleed	Seat Material	316 Stainless Steel
Handle Type	Stainless Steel Lever	Valve Type	Needle Valve
For Fluid Type	General Gaseous and Liquid Media	Maximum Operating Pressure	3600
Seal Material	Graphoil	Application	Instrument Isolation, In Situ Calibration, Inline Process Isolation, Chemical Injection, Process Sampling
Bore Diameter	5	Vent Plug Thread Size	1/4" NPT F
Body Material	316 Stainless Steel	Minimum Operating Temperature	-54
Outlet Connection Size	1/2" NPT F	Specifications Met	Fire Safe
Flow Rate	n/a
