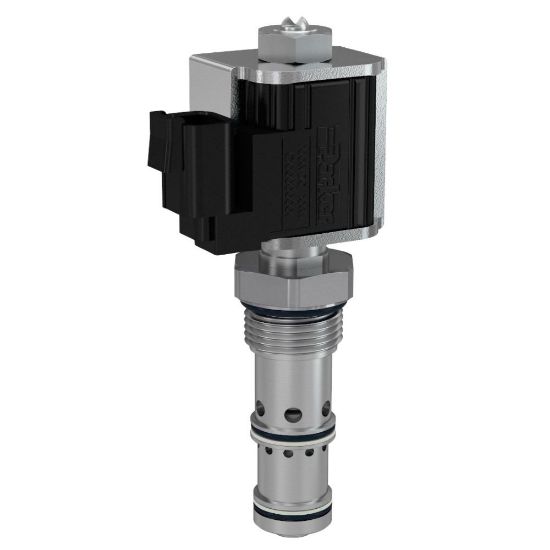

Parker FAPC121CV - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FAPC121CV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Connection Size	n/a
Connection Type	n/a	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Flow Rate	15
Maximum Flow Rate	15	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Maximum Operating Pressure	3000
Operation Type	Solenoid Operated	Coil Nut Tightening Torque	3
Cavity Size	C12-3L	Maximum Inlet Pressure Rating	3000
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-15 to +400	Frequency	100-400
Maximum Operating Temperature	+400	Leak Rate	5 @ 3000 PSI (210 BAR)
Weight	0.79	Function	Proportional Pressure Compensated Flow Control/Regulator
Installation Torque	35	Coil Type	5/8" Super Coil Low Watt (CAS)
Hysteresis	< 10%	Flow Direction	Top to Side (3 - 2)
Power Consumption	18	Minimum Pressure Differential	500
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
