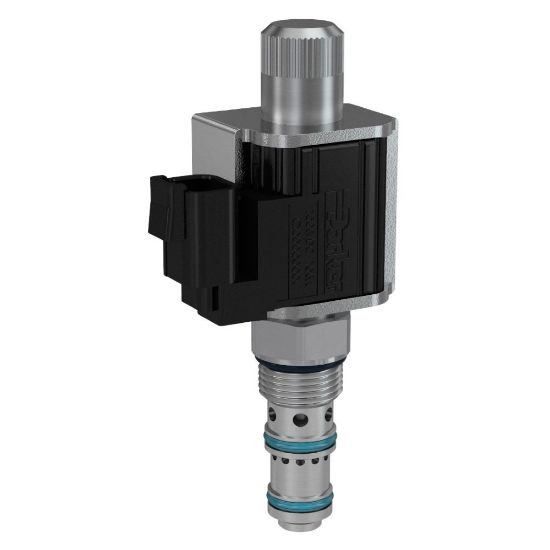

Parker FAPC101NV - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FAPC101NV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Flow Rate	10
Connection Size	n/a	Connection Type	n/a
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Maximum Operating Pressure	3000	Weight	0.52
Operation Type	Solenoid Operated	Coil Nut Tightening Torque	Finger Tight
Maximum Flow Rate	10	Maximum Inlet Pressure Rating	3000
Configuration	Normally Open	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-15 to +400	Frequency	100-400
Maximum Operating Temperature	+400	Leak Rate	5 @ 3000 PSI (210 BAR)
Installation Torque	25	Function	Proportional Pressure Compensated Flow Control/Regulator
Cavity Size	3X	Coil Type	5/8" Super Coil Low Watt (CAS)
Hysteresis	< 10%	Flow Direction	Top to Side (3 - 2)
Power Consumption	18	Minimum Pressure Differential	500
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC	Seal Material	Fluorocarbon
Configuration	Normally Open	Maximum Flow Rate	10 GAL/MIN, 38 L/MIN
