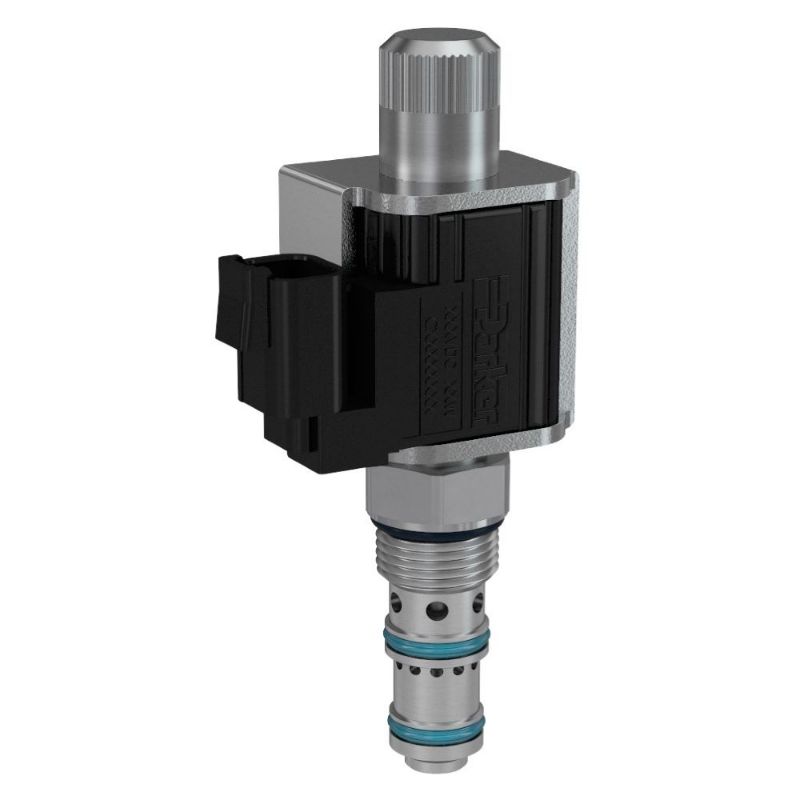

Parker FAPC101NN - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FAPC101NN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Maximum Operating Pressure	210 bar
Weight	0.52 lb	Flow Rate	10 Gal/min
Operation Type	Solenoid Operated	Installation Torque	34 Nm
Maximum Flow Rate	10 Gal/min	Maximum Inlet Pressure Rating	210 bar
Maximum Operating Temperature	+121 °C	Frequency	100-400 Hz
Configuration	Normally Open	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Function	Proportional Pressure Compensated Flow Control/Regulator	Cavity Size	3X
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 10%
Flow Direction	Top to Side (3 - 2)	Power Consumption	18 W
Coil Nut Tightening Torque	Finger Tight Nm	Minimum Pressure Differential	500 psi
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A	Seal Material	Nitrile
Configuration	Normally Open	Maximum Flow Rate	10 GAL/MIN, 38 L/MIN
