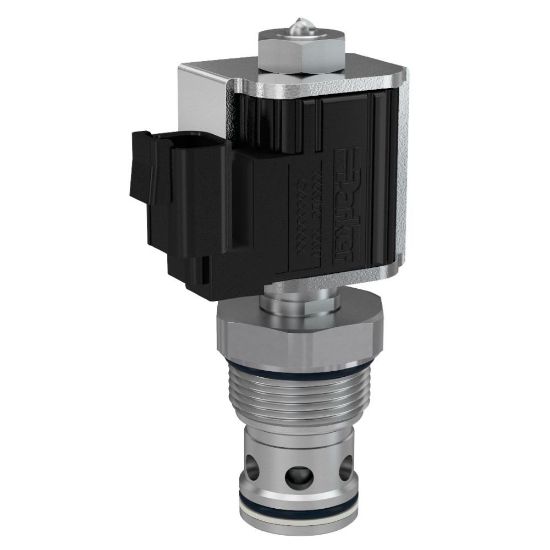

Parker FAP161CN - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FAP161CN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Maximum Operating Pressure	3000 psi
Seal Material	Nitrile	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Override Functionality	n/a	Maximum Inlet Pressure Rating	3000 psi
Cavity Size	C16-2	Flow Rate	106 L/min
Maximum Operating Temperature	+121 °C	Function	Proportional Flow Control/Regulator
Frequency	100-400 Hz	Configuration	Normally Closed
Flow Direction	Side to Nose (2 - 1)	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Variation of Closing Point	N/A
Hysteresis	< 15%	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Weight	0.4 kg	Maximum Flow Rate	106 L/min
Installation Torque	80-85 lb-ft	Coil Type	5/8" Super Coil Low Watt (CAS)
Power Consumption	18 W	Coil Nut Tightening Torque	1 lb-ft
Variation of Opening Point	20-25% of Input Signal	Minimum Pressure Differential	21 bar
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Flow Rate	28 GAL/MIN, 106 L/MIN
