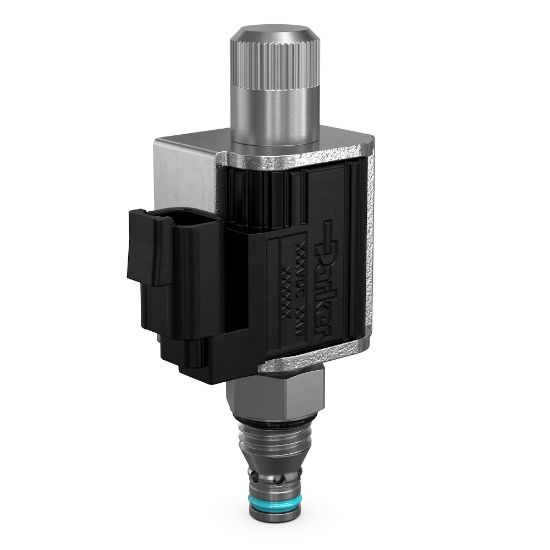

Parker FAP081N - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FAP081N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Body Material	n/a
Flow Rate	40 L/min	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Maximum Operating Temperature	+200 °F
Maximum Operating Pressure	210 bar	Override Functionality	n/a
Cavity Size	C08-2	Maximum Flow Rate	40 L/min
Seal Material	D-Ring (Standard)	Installation Torque	30 Nm
Maximum Inlet Pressure Rating	210 bar	Function	Proportional Flow Control/Regulator
Frequency	100-400 Hz	Configuration	Normally Open
Flow Direction	Side to Nose (2 - 1)	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Variation of Opening Point	N/A	Hysteresis	< 15%
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Operating Temperature	-37 to +93 °C
Weight	0.48 lb	Coil Type	5/8" Super Coil Low Watt (CAS)
Power Consumption	18 W	Coil Nut Tightening Torque	1.4 Nm
Variation of Closing Point	60-65% of Input Signal	Minimum Pressure Differential	300 psi
Configuration	Normally Open	Seal Material	D-Ring (Standard)
Maximum Flow Rate	10.5 GAL/MIN, 40 L/MIN
