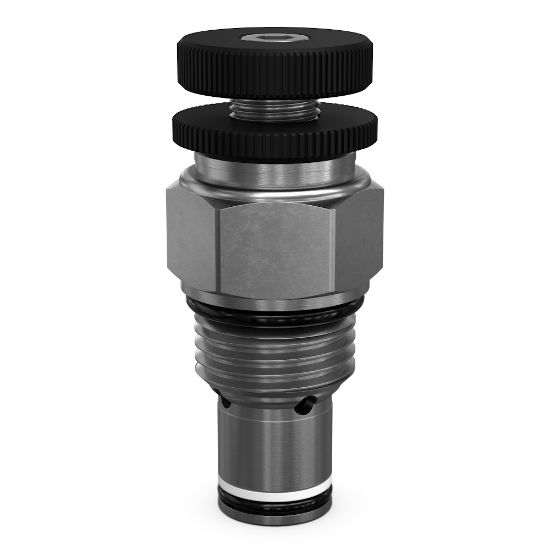

Parker FA101KV - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FA101KV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-26 °C
Weight	0.23 kg	Maximum Operating Pressure	210 bar
Function	Flow Control	Adjustment Mechanism	Knob
Cavity Size	C10-2	Maximum Inlet Pressure Rating	210 bar
Maximum Operating Temperature	+400 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate Accuracy	N/A
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	5.5 Gal/min	Configuration	Reverse Check
Flow Rate	20.6 L/min	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Installation Torque	22 (Aluminum), 65 (Steel) Nm
Flow Rate Display Range	0.75-20.6 L/min	Standard Flow Rate Setting	N/A L/min
Seal Material	Fluorocarbon	Adjustment Mechanism	Knob
Configuration	Reverse Check	Maximum Flow Rate	5.5 GAL/MIN, 20.6 L/MIN
Flow Rate Display Range	0.2-5.5 GAL/MIN, 0.75-20.6 L/MIN	Standard Flow Rate Setting	N/A
