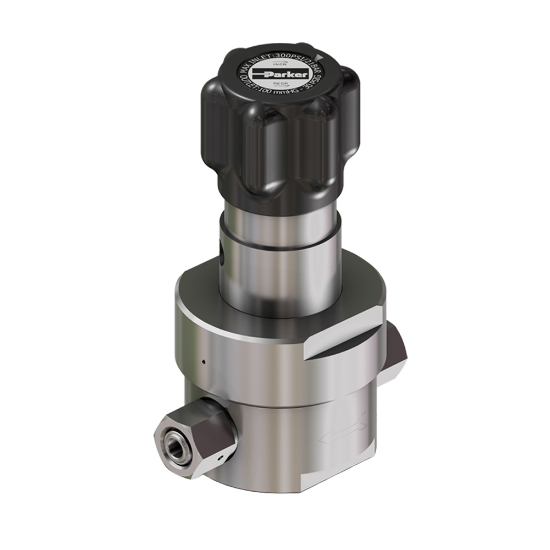

Parker FR1415LD5V2PFS6FF - FR1400

The FR1400 is an ultrahigh purity, tied diaphragm, regulator for high pressure gas delivery in semiconductor and other clean processes. Capable of high flow, it is an excellent choice for cylinder or point of use bulk and specialty gas applications

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FR1415LD5V2PFS6FF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Internal Leak Rate	4 x 10-8 scc/sec He	Poppet Material	Hastelloy C-22®
Port Connection	Female, Female	Maximum Inlet Pressure Rating	300
Outlet Pressure Rating	15-150 psig	Port Type	3/8" Face Seal
Seat Material	PCTFE	Division	Veriflo Division
Proof Pressure	4,500 psig	Seat Retainer Material	316L SS, Hastelloy C-22®
Flow Coefficient	0.5	Diaphragm Material	Hastelloy C-22®
Number of Ports	2	External Leak Rate	2 x 10-10 scc/sec He
Body Material	316L Stainless Steel Double Melt	Burst Pressure	9,000 psig
Maximum Inlet Pressure (psig)	300	Number of Ports	2
Port Connection	Female, Female	Flow Coefficient (Cv)	0.5
Body Material	316L Stainless Steel Double Melt	Port Connection Type	3/8" Face Seal
Outlet Pressure	15-150 psig	Seat Material	PCTFE
