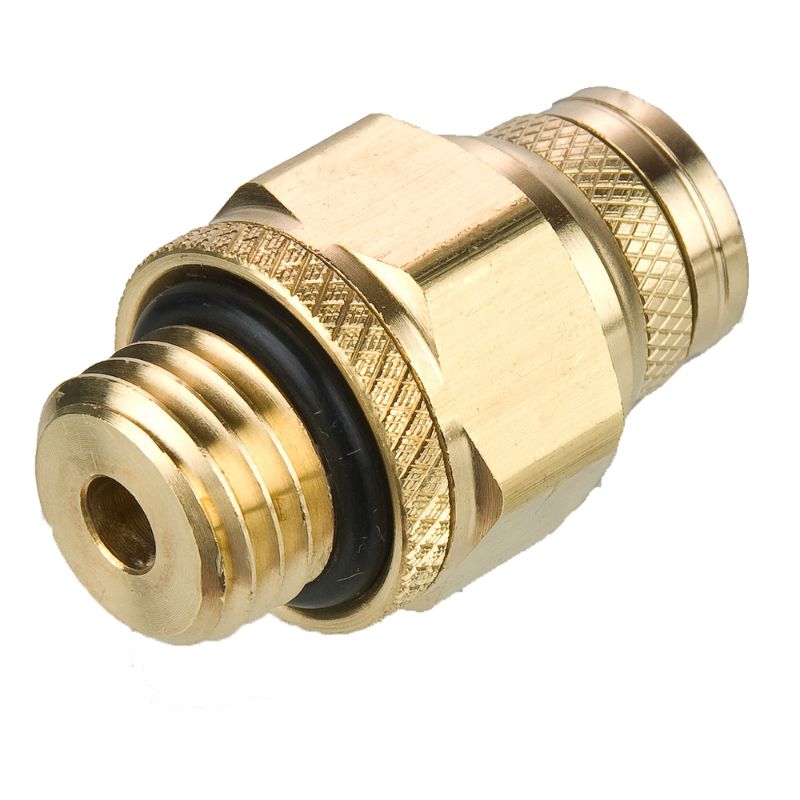

Parker F8UPMTB6-M12 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. F8UPMTB6-M12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Body Material	Brass	Minimum Operating Temperature	-40 °C
Shape	Straight	Technology	Fluid & Gas Handling
Division	Fluid System Connectors Division	Connection 2 Size	n/a
Maximum Operating Pressure	17 bar	Maximum Operating Temperature	200 °F
Connection 1 Size	n/a	Connection 1 Type	Push-to-Connect
Connection 2 Type	Metric	Connection 3 Size	N/A
Configuration	Tube to Pipe	Seal Material	Buna N (O-Ring)
Application	Accessories	Tube Material	Nylon Tubing SAE J844 Type A & B
Specifications Met	DIN 74324	Materials of Construction	Brass (Collet)
Shape	Connector	Connection 1 Size	12 mm
Connection 1 Type	Push-to-Connect	Product Style	Tube to Pipe
Connection 2 Size	M12x1.5	Connection 3 Size	N/A
Connection 3 Type	N/A	Connection 2 Type	Male M12 Thread

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
