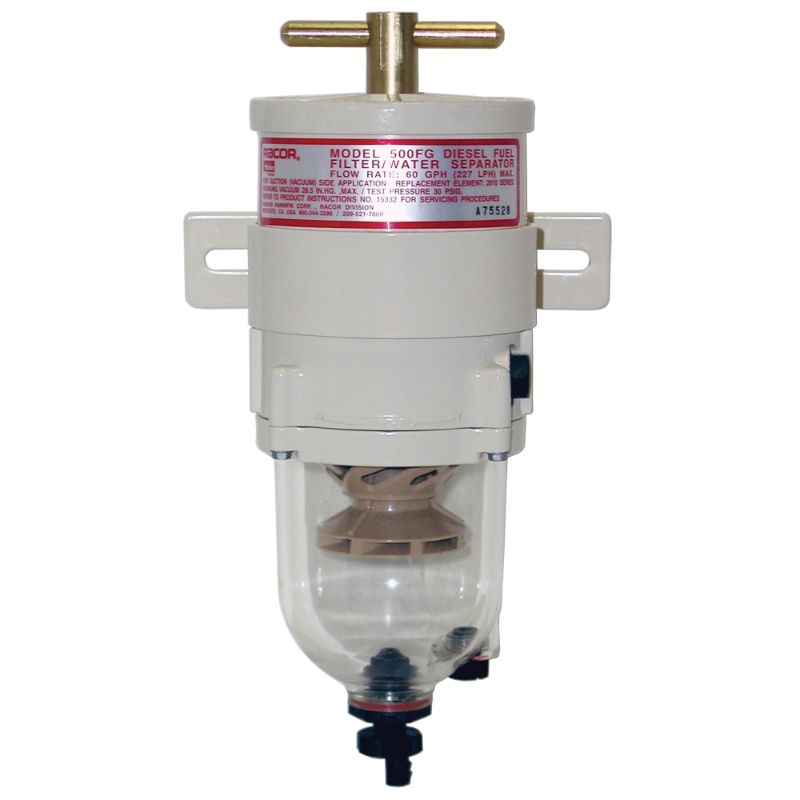

Parker 500FG1230 - Fuel Filter Water Separator – Racor Turbine Series

The Racor Fuel Filter Water Separator Turbine Series is a three-stage filtration system that provides maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 500FG1230

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Series or Model Replaced	Active Part	Application	Mobile Filtration
Catalog Number	See RSL0288	Division	Engine Mobile Original Equipment Division
Bowl Type	Clear Engineering Plastic	Brand	Racor
Connection Type	3/4"-16 UNF-2B SAE Female	Valve Type	None
Micron Rating	98% @ 30 Micron	Flow Rate	60 gph (227 lph)
Product Type	500FG Filter Housing	Location	North America and EMEA regions
Part Type	500 Single Turbine Assembly	Heater	12 Volt

Product resources

Literature and Reference Materials

Cut Sheet - RSL0385- Racor Series (PDF)

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--Turbine Series Catalog--RSL0385 (PDF)
