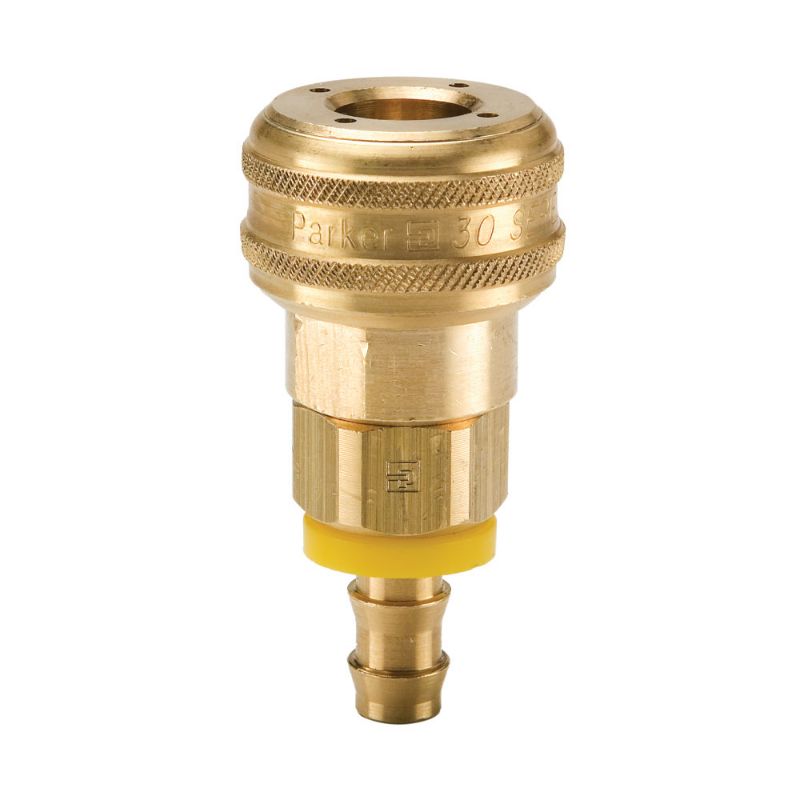

Parker B30-3BP - Industrial Interchange, Push to Connect, Quick Connect Air Couplers - 30 Series

Name: Parker B30-3BP - Industrial Interchange, Push to Connect, Quick Connect Air Couplers - 30 Series
SKU: B30-3BP
Price: 39.16 USD
Availability: LimitedAvailability

Parker's general purpose quick connect air couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

2 Limited Stock

Knoxville, TN	1
Summerville, SC	1

Partner Available:

131 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. B30-3BP

$39.16/each

Qty:

Products specifications

Attribute name	Attribute value
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Seal Material	Nitrile
Coupling Half	Coupler	Maximum Operating Pressure	300 psi
Dimensional Weight	0.07997601918465227 lb	Division	Quick Coupling Division
Valve Type	Tubular	Maximum Operating Temperature	250 °F
Sleeve Type	Push to connect	Media	Low pressure fluids and compressed air
Lock Type	Pawls	Body Material	Brass
Minimum Operating Temperature	-40 °F	Application	Air
Thread Style	na	Body Size (inch)	1/4
Body Material	BRASS	Connection Hose I.D. (inch)	1/4
Connection Type	Push-Lok hose barb	Connection Thread Size (inch)	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
