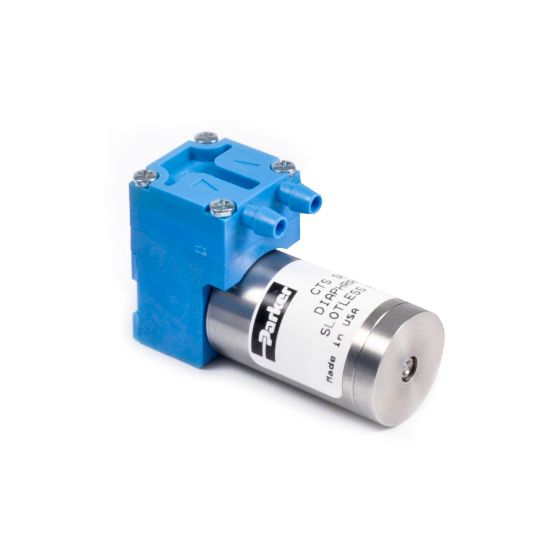

Parker E146A-12 - CTS Micro Diaphragm Pump

Parker's CTS Micro Diaphragm Pump Model delivers up to 2.5 slpm of flow into a compact 20 mm wide package. Configurable with three different motors to meet your application's specific needs and life expectations.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. E146A-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	Air	Operating Temperature	5 to 50 °C
Division	Precision Fluidics Division	Max Order Quantity	9
Standard Lead Time	20	Out of Stock Lead Time	40
Length	1.74 inch	Industry Application	Compression Therapy
Product Type	Diaphragm Pump	Noise Level	45 dBA
Operational Life	3000 Hours	Diaphragm Material	AEPDM
Maximum Continuous Pressure	n/a bar	Operating Pressure	n/a bar
Weight	45 g	Width	20.3 mm
Height	1.27 inch	Flow Rate	2.1 L/min
Motor Type	Coreless Brush DC	Body Material	PSU to Polysulphone
Product Weight	0.3	Shipping Weight	0.55
Vacuum Pressure Rating	-559 mm-Hg	Maximum Continuous Vacuum Pressure	-3.9 psi
Pump Size	Single Head	Pump Type	Vacuum
Input Voltage	12	Operational Life	3,000 hr
Motor Control Option	On/Off Power Only	Motor Option	Coreless Brush DC
Free Flow Rate	Up to 2.1 L/min
