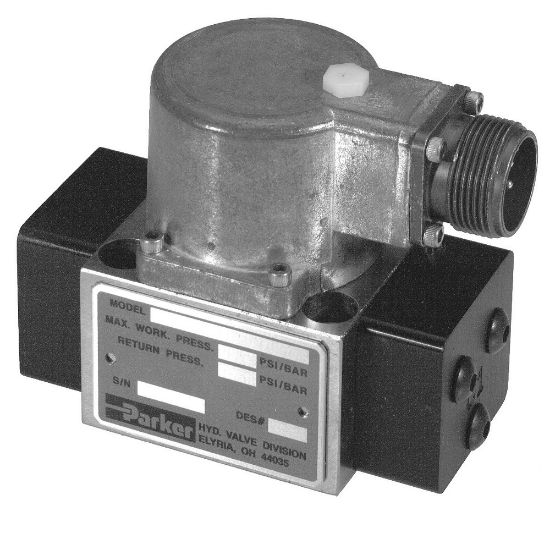

Parker DY01ADCNB1.5 - Two-Stage Torque Motor Servovalve – DY Series

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DY01ADCNB1.5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic Valve Systems Division	Maximum Operating Temperature	+180
Actuation Type	Hydraulic Pressure	Maximum Flow Rate	.5
Minimum Operating Temperature	+30	Body Material	Steel
Weight	2.1	Additional Options	Consult catalog for additional features
Maximum Operating Pressure	5000.0	Seal Material	Nitrile
Valve Type	Servovalve	Seal Material	Nitrile
Resistance (Ohms)	200 Ohms; 50 mA (Parallel); 25 mA (Series)	Maximum Operating Pressure (psi)	5000
Wiring	(+) signal A, C	Flow Rate (gpm)	1.5

Product resources

Literature and Reference Materials

Two-Stage Torque Motor Servovalve Catalog - DY Series (PDF)
