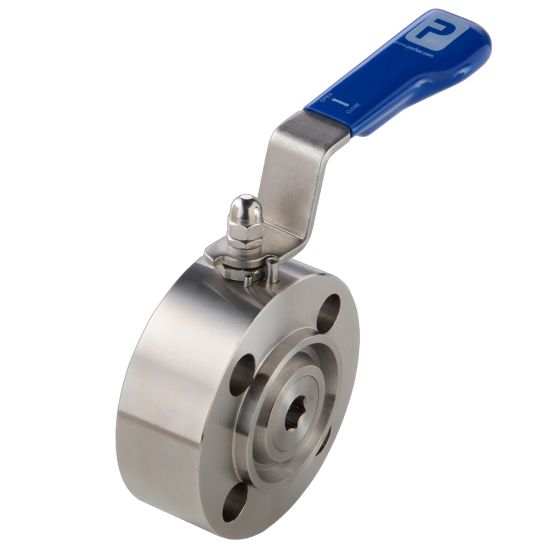

Parker MBV150B32F038 - Wafer Style Valve - Monoball Series

Parker’s wafer style valve Monoball is a one-piece design flanged ball valve that is lighter and more compact than conventional flange-to-flange mounted ball valve.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MBV150B32F038

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	NPT Female	Installation	Standard Flange Holes
Packing Material	PTFE as standard, Graphite packing fitted as standard for Fire Safe option (API 607/BS6755 Pt2)	Flange Size	2"
Flange Face Type	Raised Face	Specifications Met	Optional Fire Safe (with Graphite packing material) and NACE (316 Stainless Steel only)
Bore Diameter	25	Handle Type	Optional Lockable Handle
ANSI Flange Class	300	Materials of Construction	316 Stainless Steel
Seat Material	PTFE as standard. PEEK optional. 15 mm bore offered with PEEK seats only	Valve Configuration	Block (Flange x Screw)
Connection Size	1/2"	Division	Instrumentation Products Division
Flange Face	Raised Face	Installation	Standard Flange Holes
Material	316 Stainless Steel	Flange Size (inch)	2"
ANSI Flange Class	300	Valve Configuration Type	Block (Flange x Screw)
Bore Size (mm)	25 mm	Connection Size	1/2"
Connection Style	NPT Female
