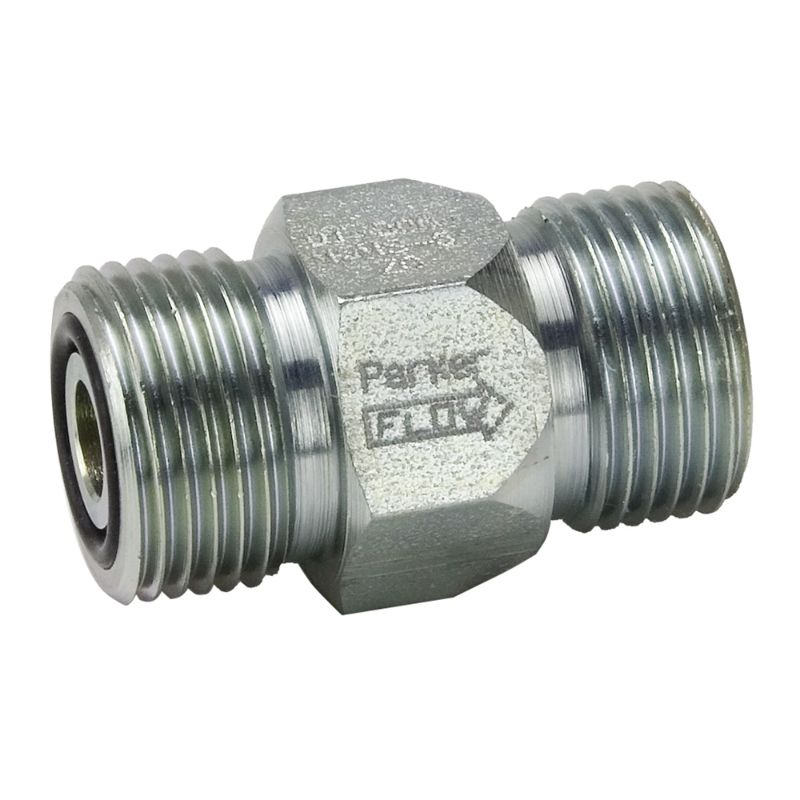

Parker DT-1000-MSMS-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DT-1000-MSMS-5

$126.99/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Metal & Elastomeric
Actuation Type	Mechanical	Body Size	1 inch
Connection Size	1- 5/16 - 12 UN	Maximum Operating Pressure	5000 psi
Flow Direction	N/A	Configuration	N/A
Connection Type	Male Seal-Lok to Male Seal-Lok	Division	Quick Coupling Division
Dimensional Weight	0.12582258992805753 lb	Maximum Operating Temperature	250 °F
Mounting Type	Threaded	Maximum Flow Rate	N/A
Body Material	Steel	Seat Type	Metal seal
Minimum Operating Temperature	-40 °F	Maximum Working Pressure (psi)	5000
Cracking Pressure (psi)	5	Inlet Port Size (inch)	1 7/16 - 12 UN
Outlet Port Size (inch)	1 7/16 - 12 UN	Inlet Port Connection Type	Male Seal-Lok
Outlet Port Connection Type	Male Seal-Lok
