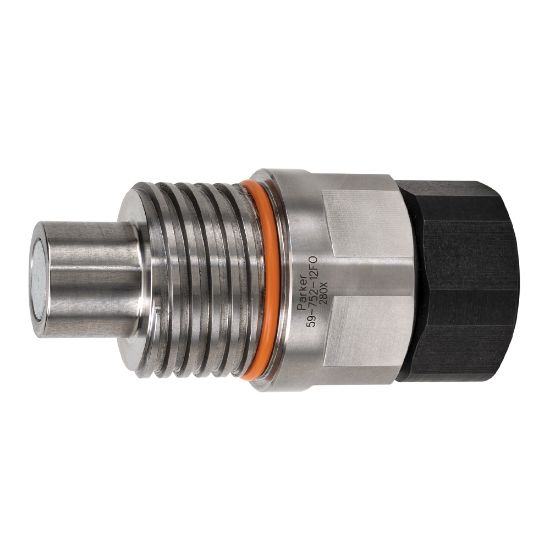

Parker 59-752-12FP - Non-Spill, Flat Face Hydraulic ACME Thread to Connect Quick Couplings - 59 Series

Parker's non-spill, flat face connect under pressure hydraulic couplers and nipples are heavy duty for use in high pressure, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 59-752-12FP

$352.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Media	Hydraulic	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Body Material	Steel
Thread Size	Female	Minimum Operating Temperature	-40 °F
Plating Type	Zinc-nickel Black FNC Coating	Application	High Impulse Hydraulics
Seal Material	Polyurethane/Nitrile	Maximum Operating Pressure	6000 psi
Valve Type	Non-spill	Connection Type	NPTF
Connection Thread Size (inch)	3/4 - 14	Coupling Half	Nipple
Body Size (inch)	3/4	Maximum Working Pressure (psi)	6000
