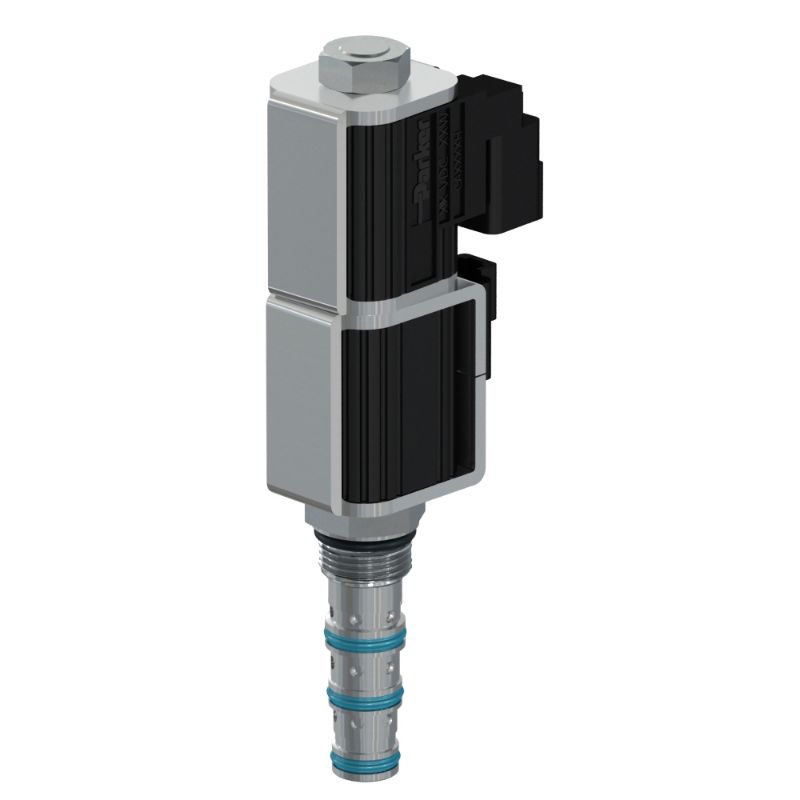

Parker DSP105C1MV - Directional Control Proportional Valves

Parker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSP105C1MV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Flow Rate	8.5
Maximum Operating Pressure	3000	Weight	0.57
Coil Type	5/8" Super Coil High Watt (CAP)	Coil Nut Tightening Torque	3
Cavity Size	C10-4	Maximum Inlet Pressure Rating	3000
Configuration	Normally Closed	Actuation Type	Electrical, Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-15 to +400	Current	2.33 @ 12 VDC, 1.17 @ 24 VDC
Frequency	100-400	Power Consumption	28
Maximum Operating Temperature	+400	Response Time	50
Maximum Tank Pressure	3000	Function	Proportional Directional Control
Leak Rate	10 @ 3000 PSI (210 BAR)	Maximum Flow Rate	8.5
Installation Torque	25	Override Functionality	Push and Pull
Hysteresis	Less than 6%	Flow Rate Accuracy	+/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator
Variation of Opening Point	25% - 30% of Input Signal	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Flow Rate	8.5 GAL/MIN, 32 L/MIN	Override Functionality	Push and Pull
