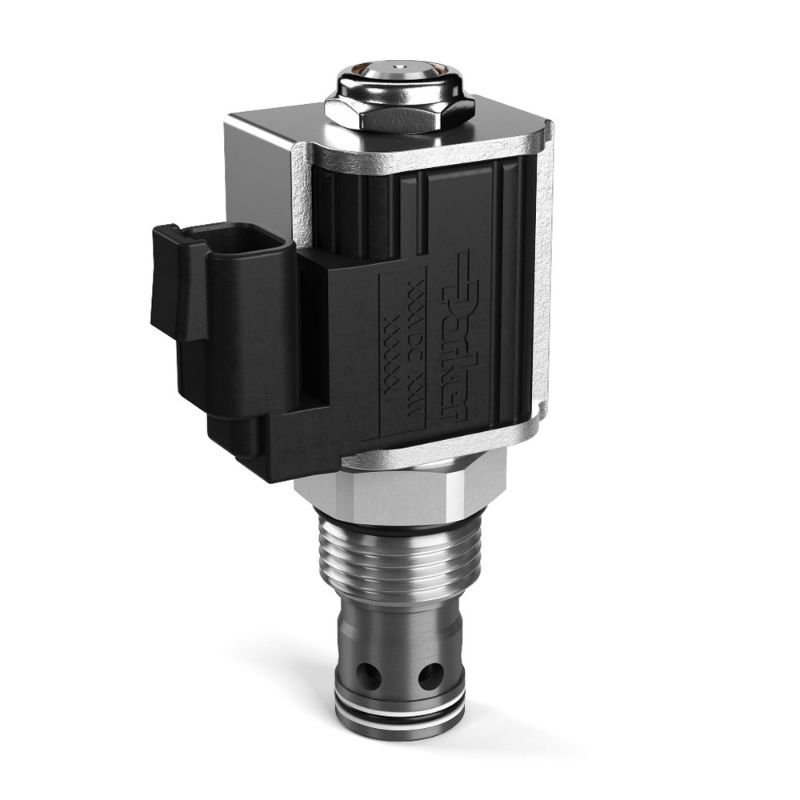

Parker DSH121N - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	Quote Required
Partner Available:	29 In Stock

Brand Parker

Part No. DSH121N

$150.94

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Body Material	n/a	Division	Hydraulic Systems Division
Flow Direction	Side to Nose (2-1)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Function	2-Way	Minimum Operating Temperature	-34 °C
Weight	0.65 lb	Override Functionality	n/a
Maximum Operating Pressure	350 bar	Maximum Inlet Pressure Rating	350 bar
Operation Type	Solenoid Operated	Cavity Size	C12-2
Maximum Operating Temperature	+121 °C	Configuration	Normally Open
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Wire Mesh Screen Included	No	Flow Rate	90 L/min
Mounting Type	Screw in cartridge valve	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Nut Tightening Torque	7-10 Nm
Free Reverse Flow	No	Adjustment Mechanism	N/A
Coil Type	5/8" Super Coil	Response Time	70 ms
Seal Material	Nitile	Maximum Flow Rate	90 L/min
Installation Torque	92-96 lb-ft	Seal Material	Nitrile
Configuration	Normally Open	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Wire Mesh Screen Included	No
Flow Rate	24 GAL/MIN, 90 L/MIN
