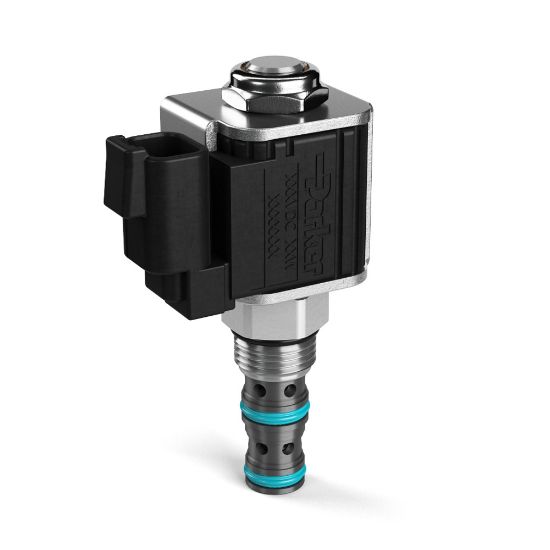

Parker DSH083CT - 3 Way Solenoid Valves for High Pressure Hydraulic Applications

High pressure solenoid valves are direct acting 3-way, 2-position spool-type to cover a wide range of flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi). These screw-in cartridge valves are fast to respond to coil voltage.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSH083CT

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-35	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	3-Way
Weight	0.28	Maximum Inlet Pressure Rating	5000
Flow Rate	4	Seal Material	D-Ring (Standard)
Cavity Size	C08-3	Maximum Operating Temperature	+200
Configuration	Normally Open	Actuation Type	Electrical, Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C)	Response Time	50
Installation Torque	32-36	Override Functionality	Push and Twist
Coil Nut Tightening Torque	5-7	Leak Rate	160 @ 5000 PSI (350 BAR)
Flow Direction	3-1 De-energized, 2-1 Energized	Maximum Flow Rate	4
Operating Temperature	-37 to +93	Configuration	Normally Open
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Actuation Type	Electrical, Manual	Flow Rate	4 GAL/MIN, 15 L/MIN
Flow Direction	3-1 De-energized, 2-1 Energized
