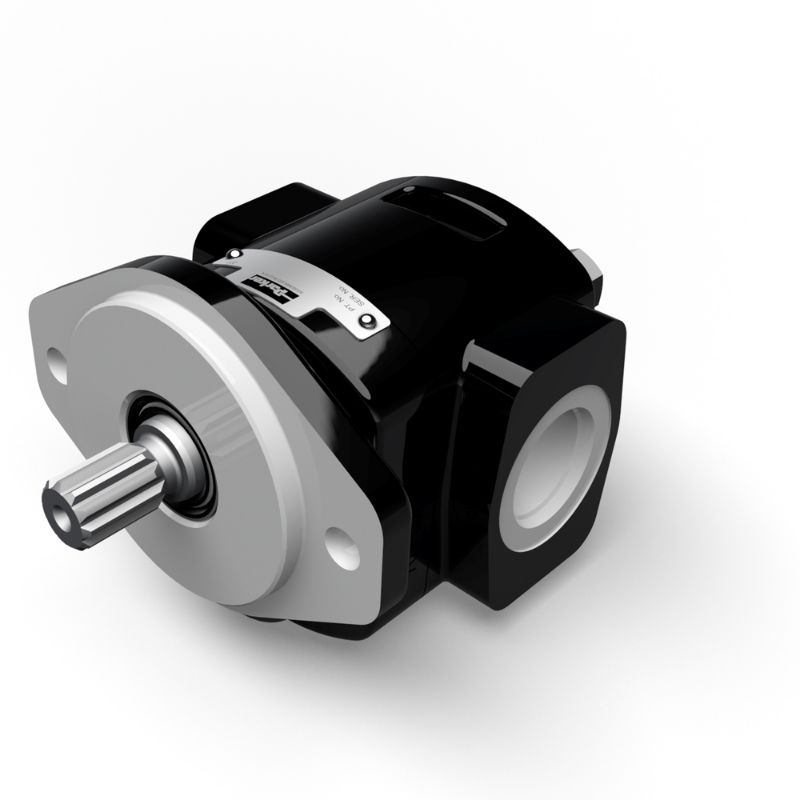

Parker Cast Iron Pumps – PGP610 Series - Cast Iron Pumps – PGP610 Series

Parker’s PGP610 Series Cast Iron Gear Pump is a type of fixed/positive displacement gear pump that offers high performance and high power density due to its two-piece cast iron construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. Cast Iron Pumps – PGP610 Series

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Filter Included	No	Flow Rate	n/a
Weight	8	Division	Pump & Motor Division
Media	n/a	Pump Type	Gear
Sensor Type	n/a	Circuit Path	Open
Drain Option	No	Body Material	Cast Iron
Port Location	Rear Ports	Maximum Flow Rate	n/a
Maximum Noise Level	n/a	Charge Pump Included	No
Direction of Rotation	Counterclockwise	Thru-Drive Capability	No
Energy Recovery Capability	No	Maximum Kinematic Viscosity	7500
Minimum Kinematic Viscosity	50	Radial Load Capacity	Consult Parker
For Fluid Type	Water-Glycol	Maximum Operating Pressure	275
Port Type	Straight Threaded	Shaft Type	ISO
Displacement	up to 32	Configuration	Tandem
Control Method	Load Sense	Mounting Option	ISO
Port Connection	ISO	ConfiguratorType	Algroeconfigurator
Operating Pressure	up to 3989	ConfiguratorModelID	PGP610
Maximum Displacement	32	Maximum Operating Speed	3750
Maximum Fluid Temperature	80	Minimum Fluid Temperature	-20
