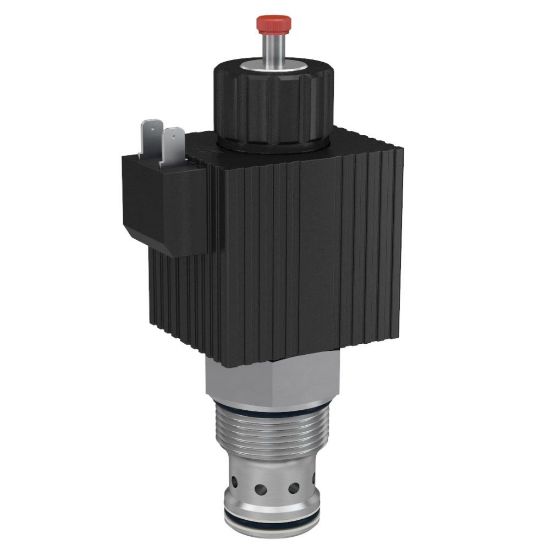

Parker DS162CV - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DS162CV

$195.94

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Wire Mesh Screen Included	No
Actuation Type	Electrical, Manual	Function	2-Way
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Leak Rate	240 CC/min @ 3000 PSI (210 BAR) cm3/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Pressure	3000 psi
Installation Torque	54 Nm	Coil Nut Tightening Torque	3 lb-ft
Flow Rate	75 L/min	Configuration	Normally Closed
Operation Type	Solenoid operated, Manually operated	Minimum Operating Temperature	-26 °C
Response Time	90 ms	Override Functionality	Push
Maximum Flow Rate	20 Gal/min	Coil Type	1" DS Coil
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Temperature	+204 °C
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	3000 psi
Weight	1.3 lb	Seal Material	Fluorocarbon
Operating Temperature	-26 to +204 °C	Division	Hydraulic Systems Division
Input Voltage	85% of rated voltage at 72°F (20°C) min	Cavity Size	C16-2
Body Material	n/a	Mounting Type	Screw in cartridge valve
Flow Rate	20 GAL/MIN, 75 L/MIN	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical, Manual	Configuration	Normally Closed
Wire Mesh Screen Included	No	Seal Material	Fluorocarbon
