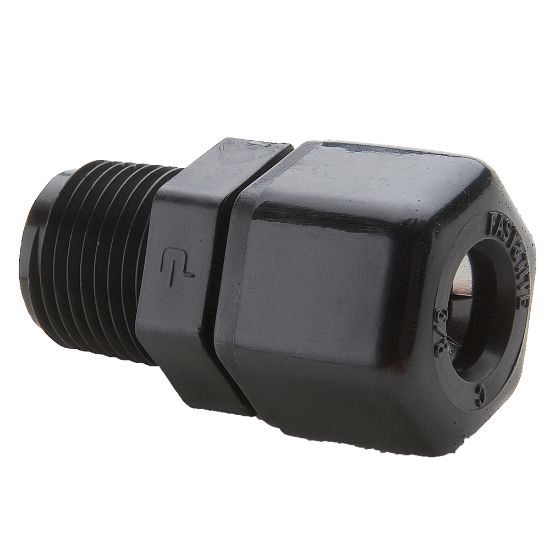

Parker P8MC4 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Availability:	Quote Required
Partner Available:	232 In Stock

Brand Parker

Part No. P8MC4

$2.42

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	212 °F	Minimum Operating Temperature	0 °F
Specifications Met	FDA	For Fluid Type	Air
Maximum Operating Pressure	10 bar	Application	Dispensing
Tube Material	Thermoplastic	Dimensional Weight	0.5504 lb
Seal Material	Nitrile (O-Ring)	Gripping Ring Material	Stainless Steel AISI 302
Body Material	Polypropylene	Product Style	Connector
Connection 2 Thread Size	1/4"	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	1/2" (O.D.)	Configuration	Tube to Pipe
Connection 2 Type	NPTF	Body Material	Black Polypropylene
