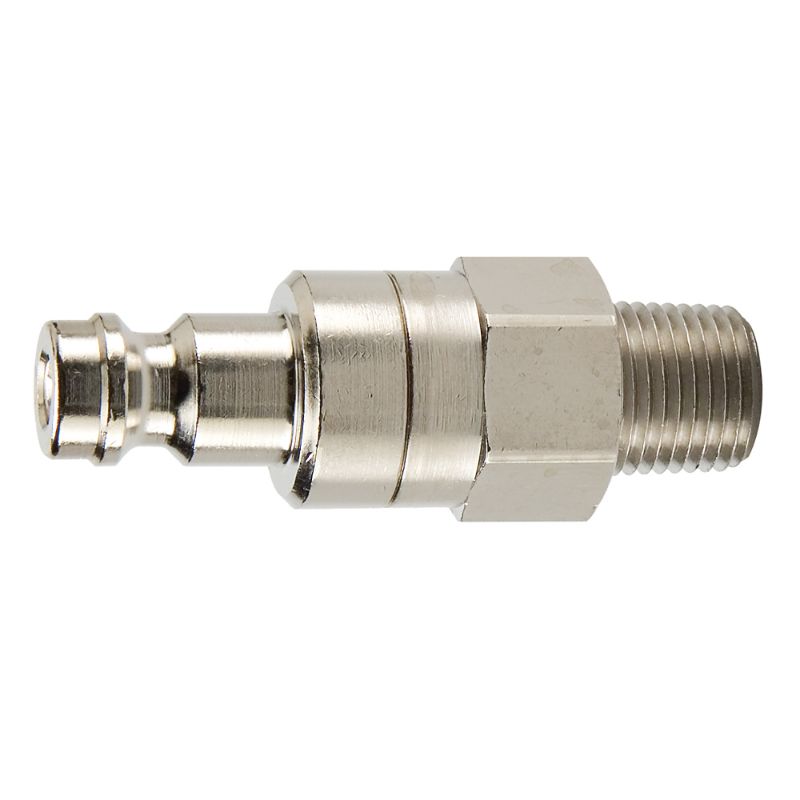

Parker DM-122-4MP - Miniature Size, Double Shut-off, Push to Connect Quick Couplings - DM Series

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DM-122-4MP

Products specifications

Attribute name	Attribute value
Product Type	Push to connect	Minimum Operating Temperature	-15.0 °F
Plating Type	Nickel Plated	Application	Fluid or gas, low pressure
Flow Rate	0.8 Gal/min	Maximum Operating Pressure	250.0 psi
Seal Material	Fluorocarbon	Valve Type	Poppet
Maximum Operating Temperature	400.0 °F	Division	Quick Coupling Division
Hex Size	0.55 inch	Body Material	Brass
Coupling Half	Male Nipple	Connection Thread Size	1/4 - 18
Body Size	1/8	Connection Type	Male UNF
