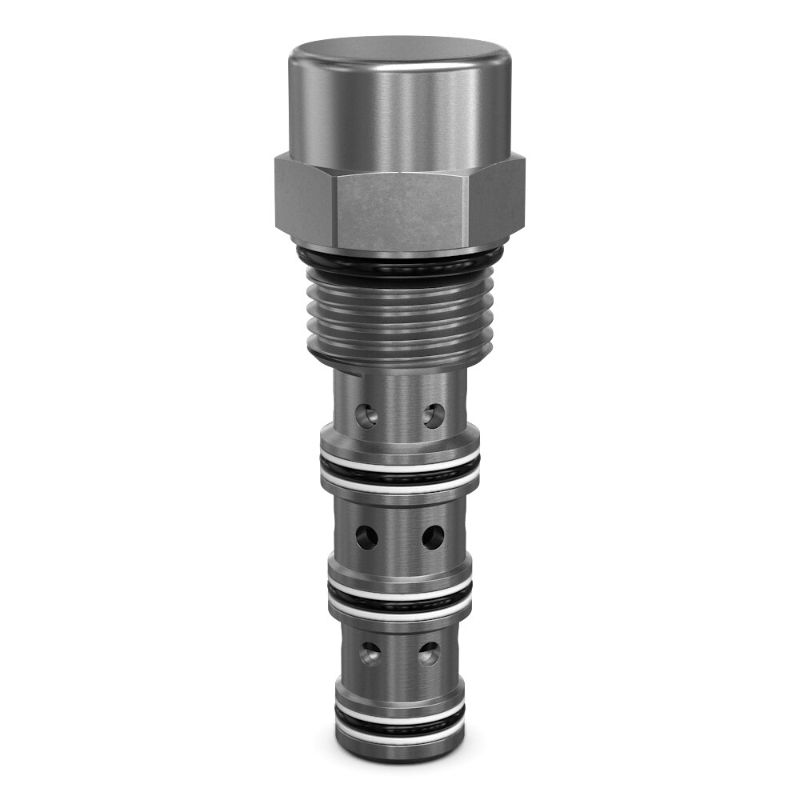

Parker DH103B - 3 Way Pilot Operated Directional Control Valves

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. DH103B

$76.69

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Body Material	n/a	Flow Rate	38 L/min
Division	Hydraulic Systems Division	Operation Type	Pilot Operated
Pilot Location	External	Installation Torque	16 lb-ft
Maximum Operating Pressure	240 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	240 bar	Minimum Operating Temperature	-30 °F
Weight	0.23 kg	Drain Option	Internal
Cavity Size	C10-4	Maximum Flow Rate	10 Gal/min
Maximum Operating Temperature	+250 °F	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Function	Directional Control	Leak Rate	50 @ 3500 PSI (240 BAR) cm3/min
Actuation Type	Pilot to shift	Flow Direction	3-4 Neutral, 2-3 Piloted
Switching Pressure	80 psi	Sealed Pilot Included	N/A
Standard Flow Rate Setting	N/A Gal/min	Seal Material	Nitrile
Configuration	Normally Closed	Flow Rate	10 GAL/MIN, 38 L/MIN
Flow Direction	3-4 Neutral, 2-3 Piloted	Switching Pressure	80 PSI, 5.5 BAR
Sealed Pilot Included	N/A
