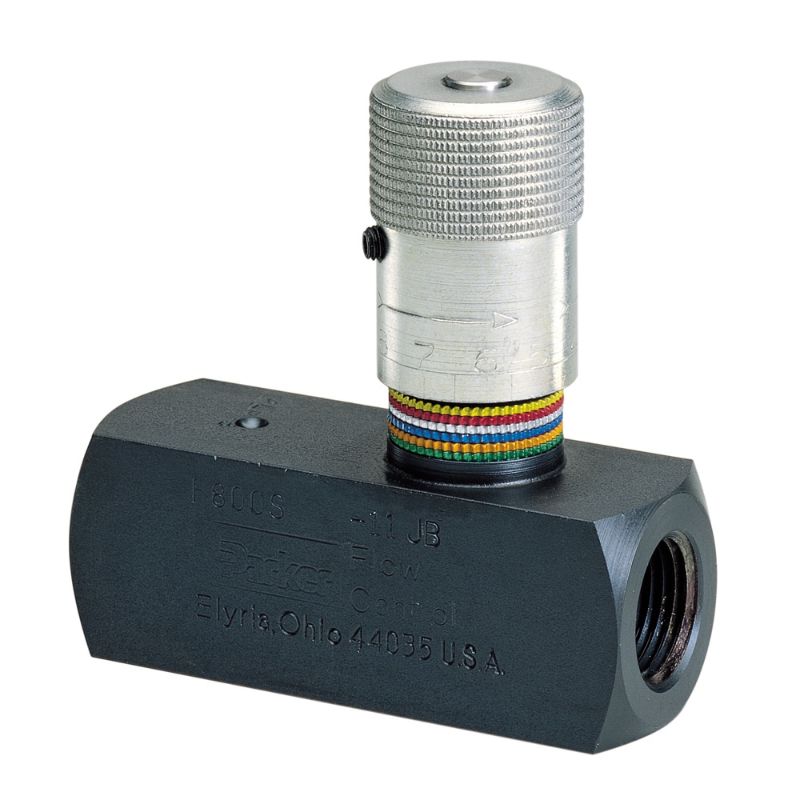

Parker 8F200S - In-line Flow Control Valve – F Series

The Colorflow F series of hydraulic flow control valves permits free flow in one direction and metered flow in the reverse direction. This flow control valve is used in air and oil applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8F200S

$116.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	121 °C
Media	Oil	Function	Flow Control
Connection Type	Female to Female	Configuration	Inline
Division	Hydraulic Valve Systems Division	Connection Size	1/8 inch
Actuation Type	Manual	Seal Material	Nitrile
Brand	Colorflow	Maximum Operating Pressure	5000 psi
Body Material	Steel	Minimum Operating Temperature	-40 °C
Maximum Flow Rate	3 Gal/min	Flow Rate	n/a
Body Material	Steel	Poppet Style	Metal
Cracking Pressure (psi)	5	Connection Size	1/8"
Maximum Operating Pressure (psi)	5000	Needle	Standard
Function	Flow Control	Minimum Operating Temperature	-40
Actuation Type	Manual	Maximum Flow Rate	3
Knob Option	Standard	Connection Type	BSPT
Configuration	InLine	Maximum Operating Temperature	+250
Seal Material	Nitrile
