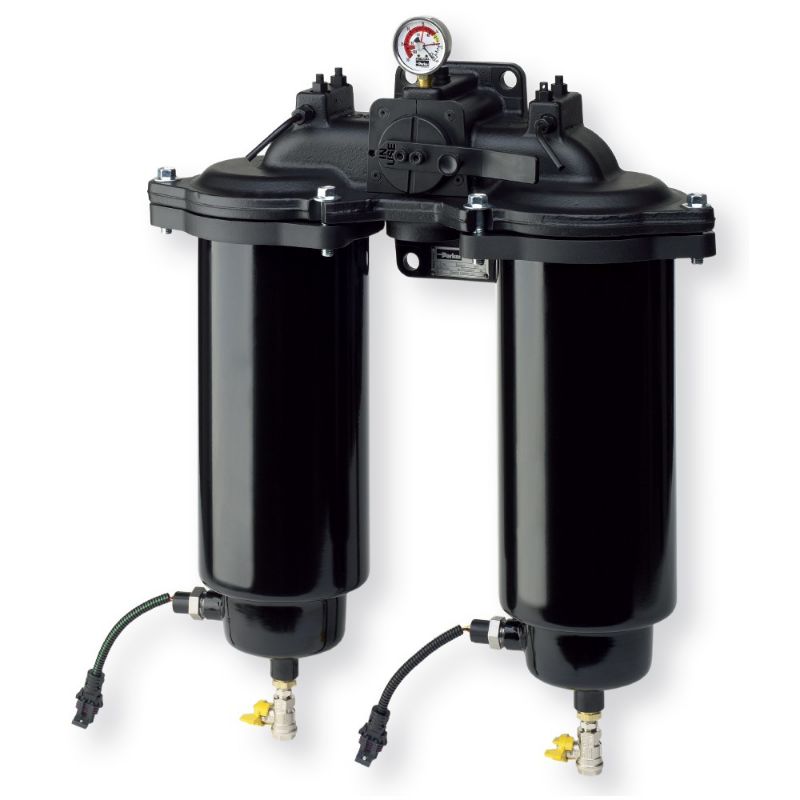

Parker DFBO1025FSVAFMD30MA - Low Pressure In-Line Duplex Fuel Filter - DFBO Series

The DFBO is a series of low pressure duplex Fuel Filters for diesel filtration in Marine applications. Suitable for flows up to 90 l/min and pressures up to 10 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DFBO1025FSVAFMD30MA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Inline	Indicator Pressure Setting	30 Inch-Hg
Seal Material	Fluorelastomer	Housing Material	Cast Iron/Steel
Operating Temperature	0 to 60 °C	Flow Rate	70 L/min
Pressure Rating	7 bar	Division	Hydraulic & Industrial Process Filtration Division EMEA
Flow Rate	70 l/min	Filter Element Type	25 µm Coalescer Separator
Indicator Type	Vacuum Gauge on Outlet Side	Length	10"
Options	Marine Assembly (max. 7 bar)	Connection Type	M30x1.5
