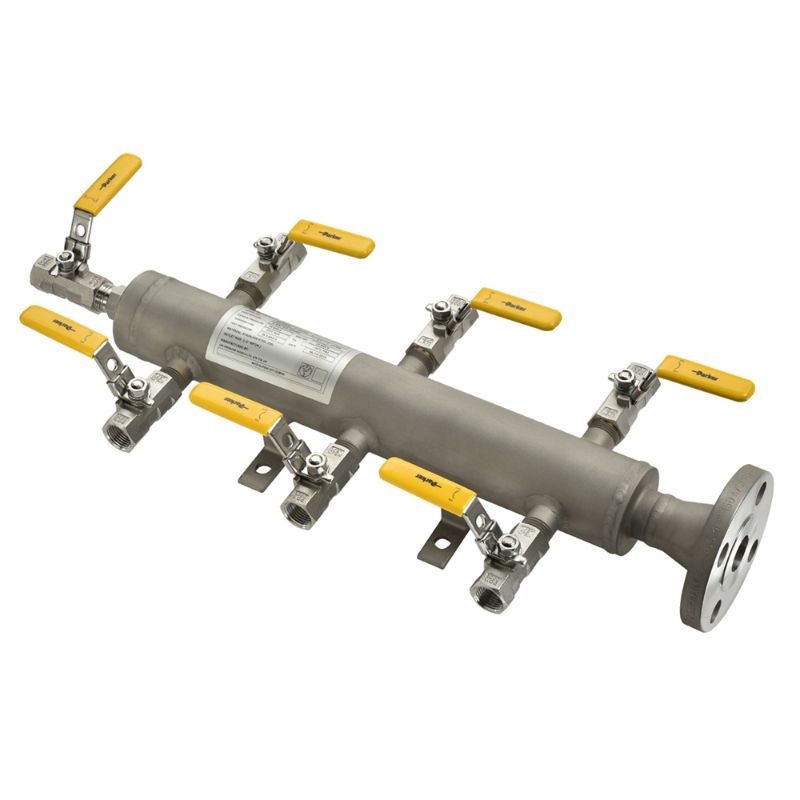

Parker LPAHMS1012F15012K8NCP - Air header distribution manifolds - LPAHM Series

Parker’s air header distribution manifolds LPAHM Series are designed to distribute air from the compressor to the actuators on pneumatic instruments, such as steam flow meters, pressure controllers and valve positioners.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LPAHMS1012F15012K8NCP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
ANSI Flange Class	150	Drain Port Size	3/4"
Industry Application	Air Distribution	Distribution Valve Outlet Connection Size	1/2"
Bore Diameter	3/8	Inlet Connection Size	3/4"
Materials of Construction	Stainless Steel 316L	Division	Instrumentation Products Division
Drain Option	Plugged distribution outlet	Maximum Operating Pressure	275
Distribution Valve Outlet Connection Type	Female NPT	Configuration	Both Sides
Number of Valves	10 Valve	Minimum Operating Temperature	-29
Drain Connection Type	BSPT	Maximum Operating Temperature	193

Product resources

Literature and Reference Materials

Distribution Manifolds for Process Instrumentation--4190-DM (PDF)
