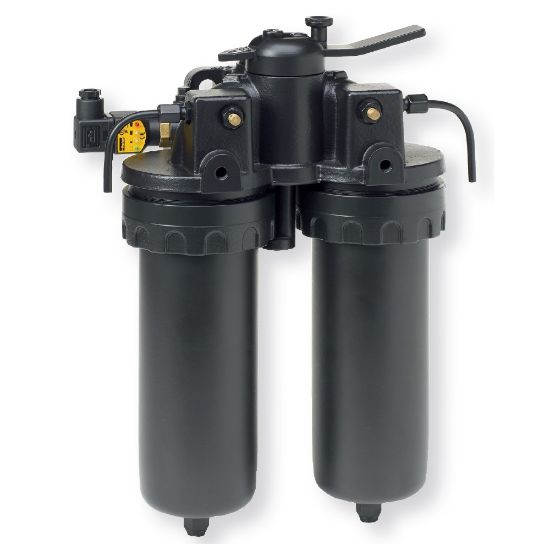

Parker DF21452060WVM3KG121 - Low Pressure In-Line Duplex Filter - DF2145 Series

The DF2145 is a series of duplex filters suitable for fuel, lube and hydraulic systems.
Suitable for flows up to 80 l/min and pressures up to 30 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DF21452060WVM3KG121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Housing Material	Cast iron	Division	Hydraulic & Industrial Process Filtration Division EMEA
Pressure Rating	30	Operating Temperature	-20 to 160
Mounting Type	Inline	Flow Rate	80
Seal Material	Fluorelastomer	Connection Type	G3/4"
Flow Rate	0 to 125 l/min	Seal Material	Fluorelastomer
Indicator Type	Visual	Indicator Pressure Setting	2.5 bar
Filter Element Type	060W Wiremesh	Micron Rating	60 µm
Bypass Valve Pressure Rating	3.5 bar
