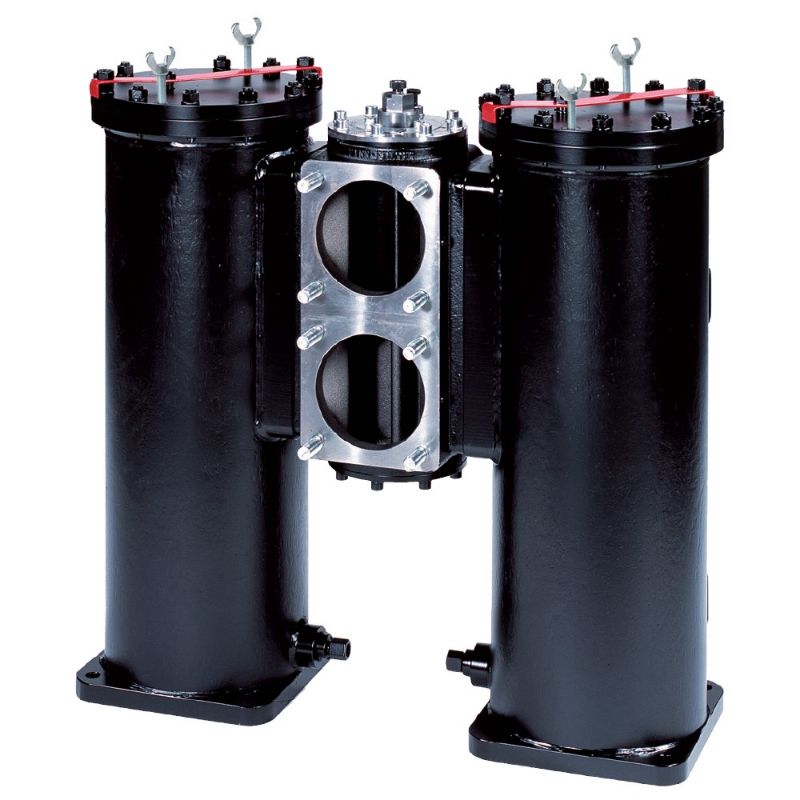

Parker DF20703015NVM3HX1601 - Low Pressure In-Line Duplex Filter - DF2070 Series

The DF2070 is a series of low pressure, high flow duplex filters for heavy fuel oil and lube system applications.
Suitable for flows up to 1800 l/min and pressures up to 10 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DF20703015NVM3HX1601

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Housing Material	Steel/Cast iron	Bypass Valve Pressure Rating	2
Port Type	160 mm Square flange & Blind counter flange	Division	Hydraulic & Industrial Process Filtration Division EMEA
Operating Temperature	-20 to 120	Mounting Type	Inline
Flow Rate	1800	Options	With bypass
Pressure Rating	10	Seal Material	Fluorelastomer
Filter Element	015N Cellulose *	Indicator Type	Visual *
Flow Capacity (l/min)	1800 *
