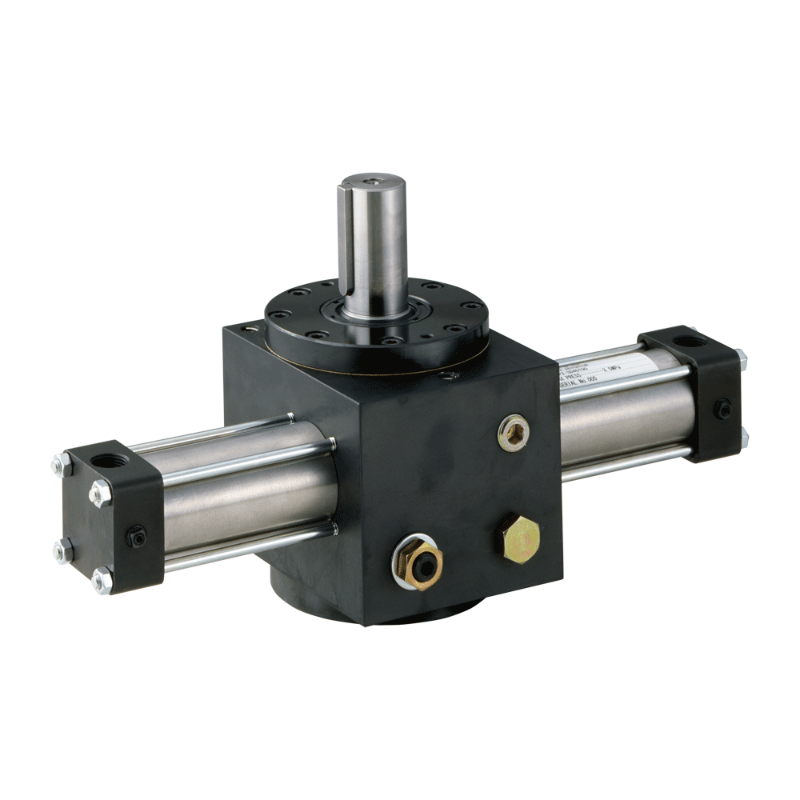

Parker H1FG00025675 - Rack-and-Pinion Rotary Actuator Model:35RP2

It is a swing type hydraulic actuator 35RP2 series that rotates by a rack and pinion. There are 5 types of cylinder bore size from φ32 to φ80, and 3 types of mounting styles.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H1FG00025675

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Temperature	10 to 60 °C	Maximum Operating Pressure	3.5 MPa
For Fluid Type	Petroleum-based Fluid	Proof Pressure	5 MPa
Division	TAIYO Division	Rated Torque	840 Nm at 3.5MPA
Thread Tolerance	JIS 6g/6H	Minimum Operating Pressure	0.5 MPa
Product Style	Rack and Pinion Type	Adjustment Angle	± 5 °
Lubricant	JIS 2219 Class 2 (gear oil equivalent to ISO VG680)	Sensor type	no sensor
Rotation	180°	Mounting Style	Basic Style
Bore Size (mm)	80	Sensor Connection	no sensor

Product resources

Literature and Reference Materials

INSTALLATION GUIDE - Cylinder Safety Guide, Europe (PDF)
