*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

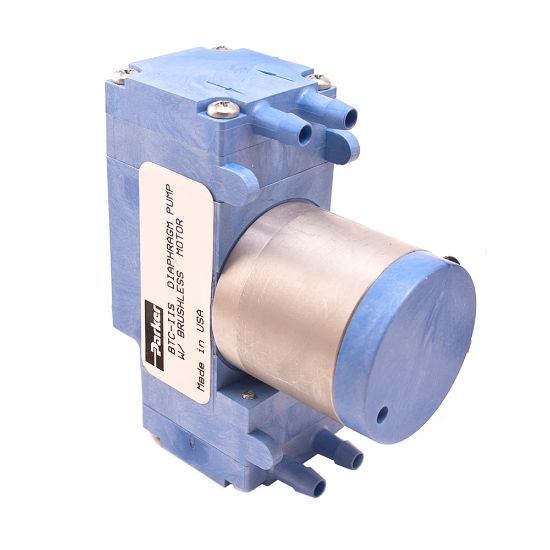

Parker D746A-22-01 - BTC Single and Dual Head Miniature Diaphragm Pump (Gas)

BTC is not recommended for new designs. The BTX-Connect and BTX-Brush series have succeeded the BTC with reduced weight, reduced vibration, added motor features, and an increased life rating.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D746A-22-01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Length	2.48 inch	Division	Precision Fluidics Division
Motor Type	Brushless DC	Body Material	Vectra LCP
Diaphragm Material	EPDM	Motor Control Option	No Control Input (Power Input Only)
Width	30.0 mm	Operational Life	>10000 Hours
Height	75.7 mm	Tube Type	Series Tubing Connection
Weight	6.5 oz	Rated Speed	3500 RPM
Pressure Rating	0.0 bar	Vacuum Pressure Rating	-660.4 mm-Hg
Input Voltage	24	Part Type	Active
Pump Size	Dual Head High Vacuum, Up to 3 L/min	Pump Type	Vacuum Only
Motor Option	>10k Hour, Compact BLDC, Up to 3 L/min	Free Flow Rate	3.1 L/min
