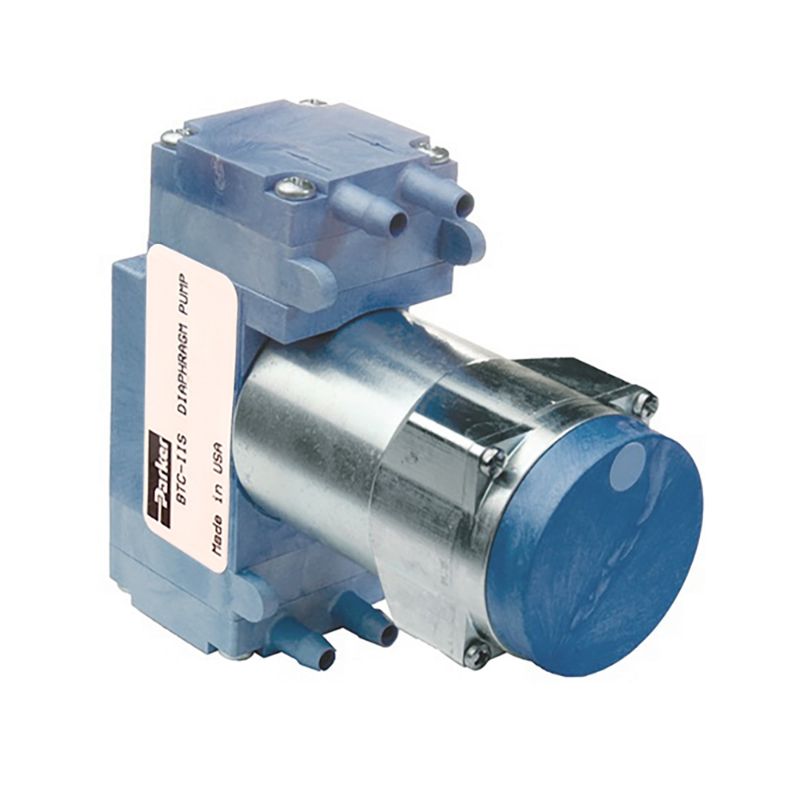

Parker D737B-22-01 - BTC Single and Dual Head Miniature Diaphragm Pump (Gas)

BTC is not recommended for new designs. The BTX-Connect and BTX-Brush series have succeeded the BTC with reduced weight, reduced vibration, added motor features, and an increased life rating.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D737B-22-01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Length	3.35 inch	Division	Precision Fluidics Division
Width	1.18 inch	Motor Type	Brushless DC
Body Material	Vectra LCP	Diaphragm Material	EPDM
Motor Control Option	No Control Input (Power Input Only)	Pressure Rating	0.0 psi
Operational Life	>10000 Hours	Height	2.98 inch
Tube Type	Parallel Tubing Connection	Weight	11.6 oz
Rated Speed	3600 RPM	Vacuum Pressure Rating	-508.0 mm-Hg
Input Voltage	12	Part Type	Active
Pump Type	Vacuum Only (High Flow)	Pump Size	Dual Head, Up to 11 L/min
Motor Option	>10k Hour, High Torque BLDC, Up to 11 L/min	Free Flow Rate	11 L/min
