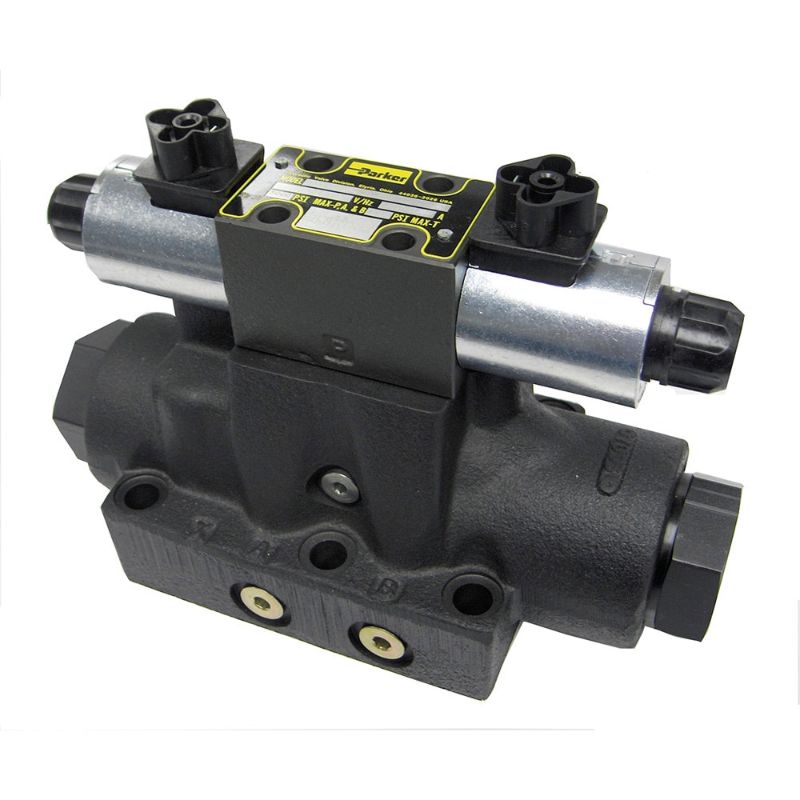

Parker D61VW004C4NYCF - Pilot Operated Directional Control Valve - D61VW Series

Parker’s D61VW directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. D61VW004C4NYCF

$1,338.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	140 °F
Power Supply Voltage	120/60 - 110/50 VAC	Options	Omit - No Options
Mounting Type	Subplate	Coil Specifications Met	Omit to Standard Valve
Additional Options	Consult catalog for other available features	Spool Position	Spring Centered
Connection Type	Leadwire Conduit Box	Valve Type	Pilot Operated Directional Control Valve
Division	Hydraulic Valve Systems Division	Seal Material	Nitrile
Actuation Type	Hydraulic Pressure	Weight	12.1 kg
Maximum Operating Pressure	3000 psi	Spool Code	4-Way
Body Material	Gray Iron	Maximum Flow Rate	100 Gal/min
Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain	Solenoid Option	Low Watt
Minimum Operating Temperature	-4 °F	Mounting Type	Subplate
Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Maximum Flow Rate	35-100 GPM
Maximum Operating Pressure	3000 psi/205 bar
