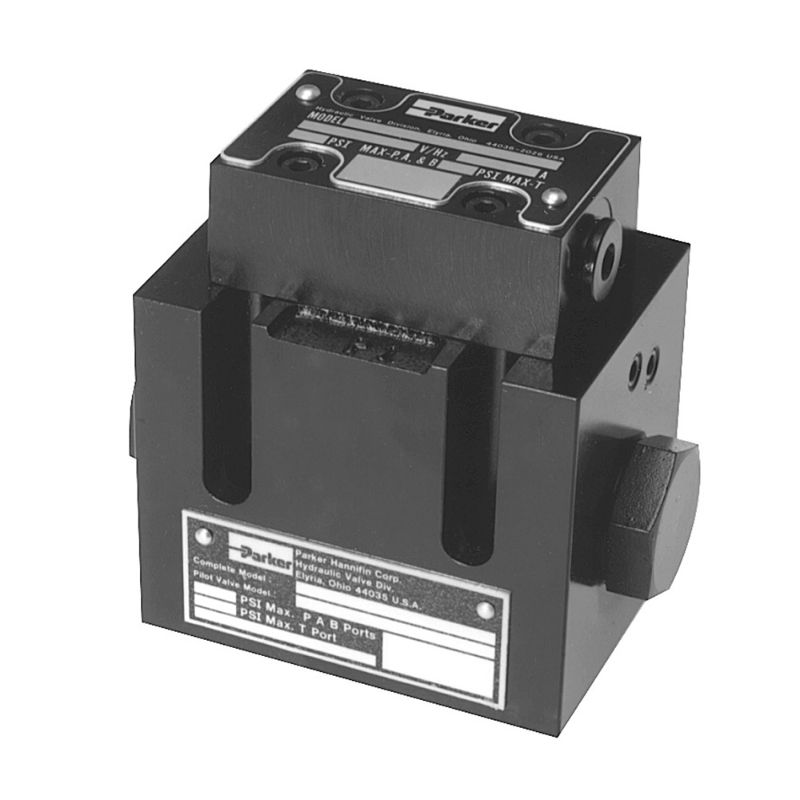

Parker D3P20B5N - Oil Operated Directional Control Valve - D3P Series

Parker's D3*P series directional control valves are 5-chamber, oil pilot operated valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D3P20B5N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	3	Mounting Type	Subplate
Maximum Operating Temperature	140	Maximum Operating Pressure	5000
Division	Hydraulic Valve Systems Division	Body Material	Gray Iron
Options	n/a	Maximum Flow Rate	40
Minimum Operating Temperature	-4	Spool Position	2-Position
Seal Material	Nitrile	Valve Type	Oil Operated Directional Control Valve
Size	CETOP 5	Actuation Type	Hydraulic Pressure
Spool Code	2-Position	Maximum Flow Rate	Up to 40 GPM depending on spool
Maximum Operating Pressure	5000 PSI	Size	NFPA DO5H, CETOP 5
Mounting Type	Subplate

Product resources

Literature and Reference Materials

Oil Operated Directional Control Valve - D3P Series (PDF)
