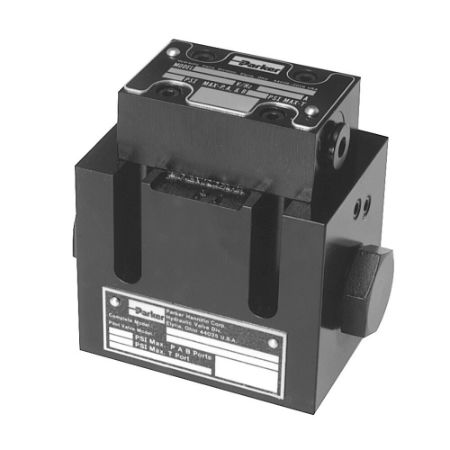

Oil Operated Directional Control Valve - D3P Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s D3P directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D05, CETOP 5 mounting patterns.
Markets
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits
• Low pressure drop design
• Hardened spools provide long life
Applications
• Suitable for general hydraulic applications
Read More...Markets
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits
• Low pressure drop design
• Hardened spools provide long life
Applications
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | Spool Code | Maximum Operating Pressure | Mounting Type | Maximum Operating Temperature | Weight | Division | Body Material | Options | Spool Position | Maximum Flow Rate | Seal Material | Valve Type | Minimum Operating Temperature | Size | Actuation Type | Maximum Flow Rate | Maximum Operating Pressure | Mounting Type | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D3P1C2N | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | n/a | 3-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2N60 | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | Pilot Choke Meter-in | 3-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2N7 | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | Pilot Choke Meter-out | 3-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2N8 | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | Stroke Adjust B End | 3-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2N89 | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | Stroke Adjust A and B Ends | 3-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2N9 | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | Stroke Adjust A End | 3-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2V | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | n/a | 3-Position | 40 | Fluorocarbon | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2V60 | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | Pilot Choke Meter-in | 3-Position | 40 | Fluorocarbon | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2V7 | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | Pilot Choke Meter-out | 3-Position | 40 | Fluorocarbon | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2V8 | Quote Required | TBD | All Ports Blocked | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | Stroke Adjust B End | 3-Position | 40 | Fluorocarbon | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2V89 | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | Stroke Adjust A and B Ends | 3-Position | 40 | Fluorocarbon | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P1C2V9 | Quote Required | TBD | 3-Position | 5000 | Subplate | 140 | 3.5 | Hydraulic Valve Systems Division | Gray Iron | Stroke Adjust A End | 3-Position | 40 | Fluorocarbon | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P20B5N | Quote Required | TBD | 2-Position | 5000 | Subplate | 140 | 3 | Hydraulic Valve Systems Division | Gray Iron | n/a | 2-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P20B5N60 | Quote Required | TBD | 2-Position | 5000 | Subplate | 140 | 3 | Hydraulic Valve Systems Division | Gray Iron | Pilot Choke Meter-in | 2-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P20B5N7 | Quote Required | TBD | 2-Position | 5000 | Subplate | 140 | 3 | Hydraulic Valve Systems Division | Gray Iron | Pilot Choke Meter-out | Single Operator | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P20B5N8 | Quote Required | TBD | 2-Position | 5000 | Subplate | 140 | 3 | Hydraulic Valve Systems Division | Gray Iron | Stroke Adjust B End | 2-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P20B5N89 | Quote Required | TBD | 2-Position | 5000 | Subplate | 140 | 3 | Hydraulic Valve Systems Division | Gray Iron | Stroke Adjust A and B Ends | 2-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P20B5N9 | Quote Required | TBD | 2-Position | 5000 | Subplate | 140 | 3 | Hydraulic Valve Systems Division | Gray Iron | Stroke Adjust A End | 2-Position | 40 | Nitrile | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P20B5V | Quote Required | TBD | 2-Position | 5000 | Subplate | 140 | 3 | Hydraulic Valve Systems Division | Gray Iron | n/a | 2-Position | 40 | Fluorocarbon | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 | ||
| D3P20B5V60 | Quote Required | TBD | 2-Position | 5000 | Subplate | 140 | 3 | Hydraulic Valve Systems Division | Gray Iron | Pilot Choke Meter-in | 2-Position | 40 | Fluorocarbon | Oil Operated Directional Control Valve | -4 | CETOP 5 | Hydraulic Pressure | Up to 40 GPM depending on spool | 5000 PSI | Subplate | NFPA DO5H, CETOP 5 |
