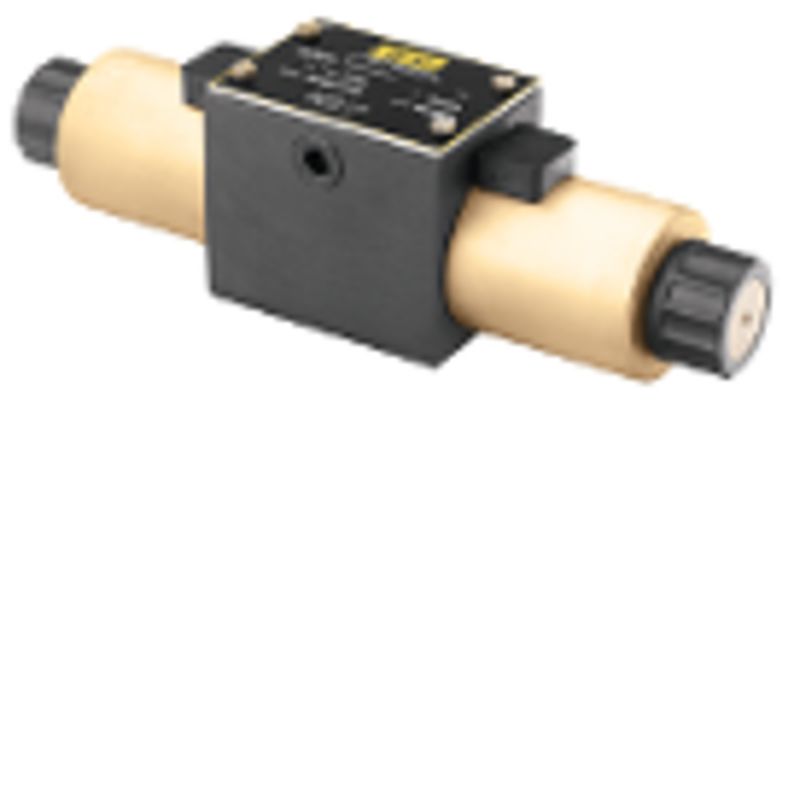

Parker D3DW1CNDW - Solenoid Operated Directional Control Valve - D3DW Series

Parker’s D3DW directional control valves are high performance, 5-chamber, direct operated, wet armature, solenoid controlled, 3 or 4-way valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D3DW1CNDW

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	5-Chamber Body Solenoid Operated Directional Control Valve	Body Material	Gray Iron
Division	Hydraulic Valve Systems Division	Minimum Operating Temperature	-4
Coil Specifications Met	Omit to Standard Valve	Seal Material	Nitrile
Additional Options	Consult catalog for additional features.	Mounting Type	Subplate
Maximum Operating Temperature	140	Maximum Operating Pressure	5000
Spool Code	4-Way	Actuation Type	Hydraulic Pressure
Connection Type	DIN w/o Plug	Weight	16
Power Supply Voltage	120 VDC	Spool Position	Double Solenoid
Size	NFPA D05	Maximum Flow Rate	33
