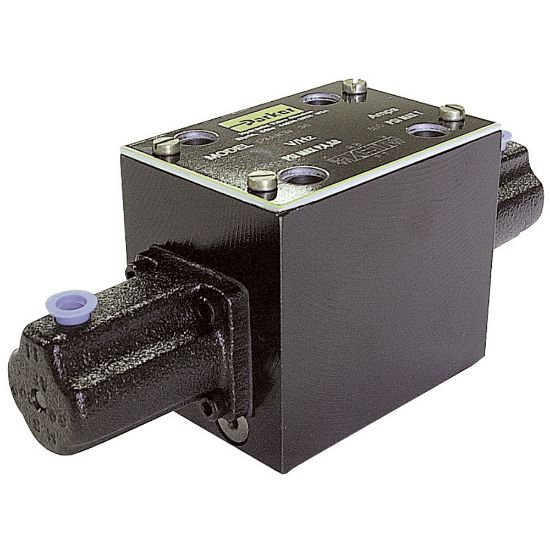

Parker D3A1CV90 - Air Operated Directional Control Valve - D3A Series

Parker’s D3A directional control valves are high performance, 4-chamber, direct operated, air pilot controlled, 4-way valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D3A1CV90

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Maximum Operating Temperature	140
Maximum Operating Pressure	5000	Division	Hydraulic Valve Systems Division
Minimum Operating Temperature	-4	Maximum Flow Rate	40
Actuation Type	Hydraulic Pressure	Size	NFPA D05
Mounting Type	Subplate	Body Material	Gray Iron
Spool Code	4-Way	Valve Type	Air Operated Directional Control Valve
Spool Position	Double Operator	Weight	9
Options	1/4 BSPP Pilot Port	Mounting Type	Subplate
Maximum Operating Pressure	5000 PSI	Size	NFPA D05, CETOP 5, NG 10
Maximum Flow Rate	Up to 40 depending on spool

Product resources

Literature and Reference Materials

Air Operated Directional Control Valve Catalog - D3A Series (PDF)
