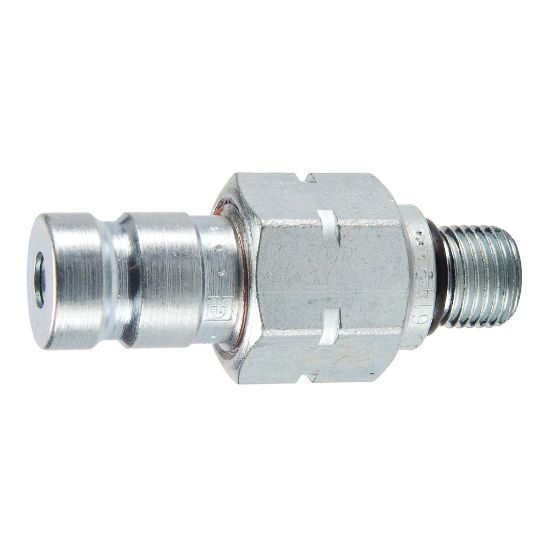

Parker PD3147 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. PD3147

$18.69

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Maximum Operating Temperature	250 °F
Valve Type	Non-spill	Product Type	Push to Connect
Seal Material	Nitrile	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Body Size	1/8 inch
Flow Rate	0.8 Gal/min	Specifications Met	SAE J1502 / ISO 15171-1
Application	Diagnostic	Hex Size	0.75 inch
Maximum Operating Pressure	6000 psi	Tube Size (inch)	na
Connection Thread Size (inch)	na	Coupling Half	Male Nipple
Connection Type	Male Metric
