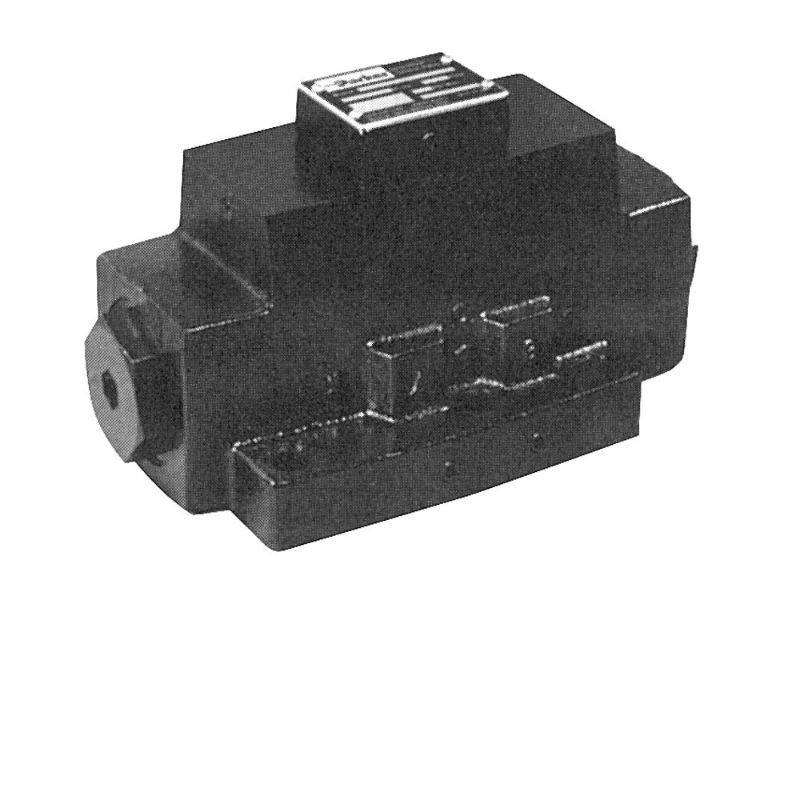

Parker D31DW004C4NJGLJ47Y . - Pilot Operated Directional Control Valve - D31DW, D31VW Series

Parker’s D31 directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D31DW004C4NJGLJ47Y .

Products specifications

Attribute name	Attribute value
Actuation Type	Hydraulic Pressure	Maximum Operating Pressure	5000
Power Supply Voltage	24	Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain
Spool Code	4-Way	Maximum Flow Rate	30
Options	-	Additional Options	Consult catalog for additional features.
Coil Specifications Met	CSA	Seal Material	Nitrile
Minimum Operating Temperature	-4	Weight	12
Spool Position	3-Position	Body Material	Gray Iron
Division	Hydraulic Valve Systems Division	Solenoid Option	High Watt (standard)
Connection Type	Plug-in Conduit Box	Mounting Type	Subplate
Maximum Operating Temperature	140	Valve Type	Pilot Operated Directional Control Valve
Maximum Flow Rate	30 gal/min	Mounting Type	Subplate
Size	NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port	Maximum Operating Pressure	5744 psi/ 345 bar
